Products Description

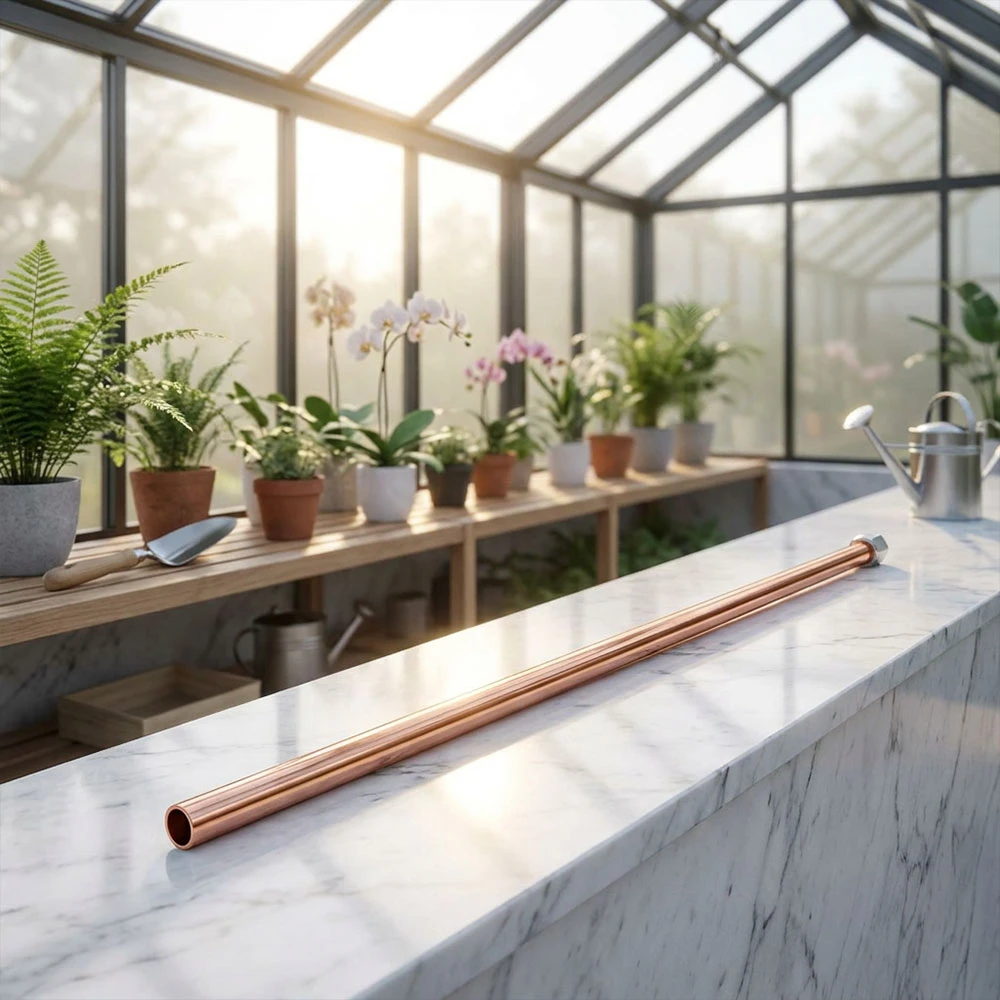

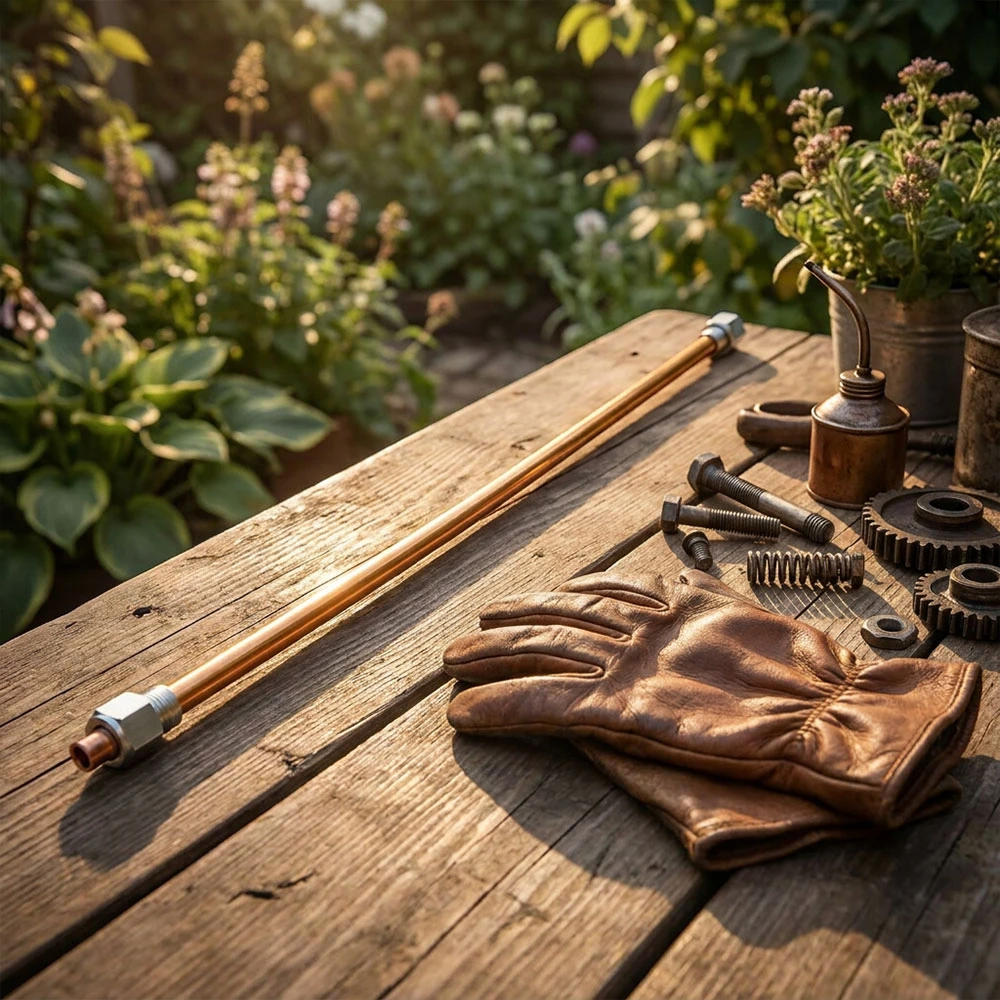

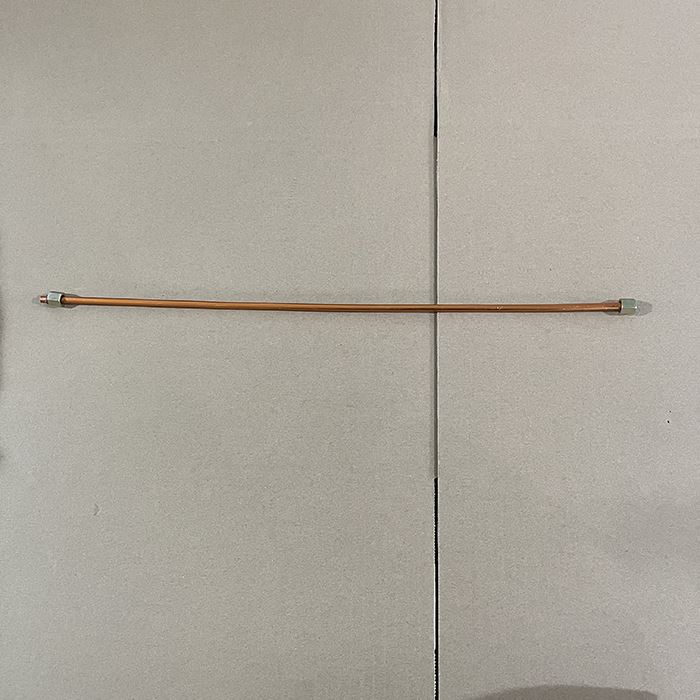

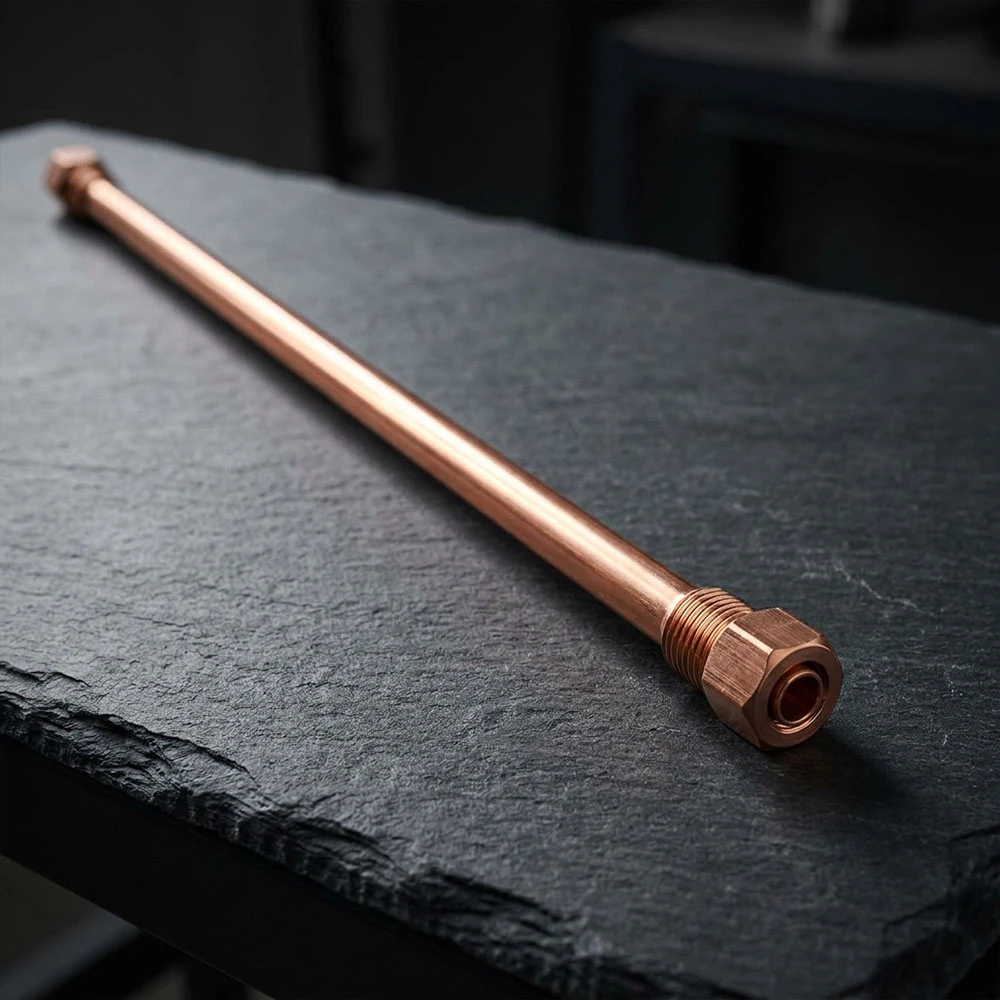

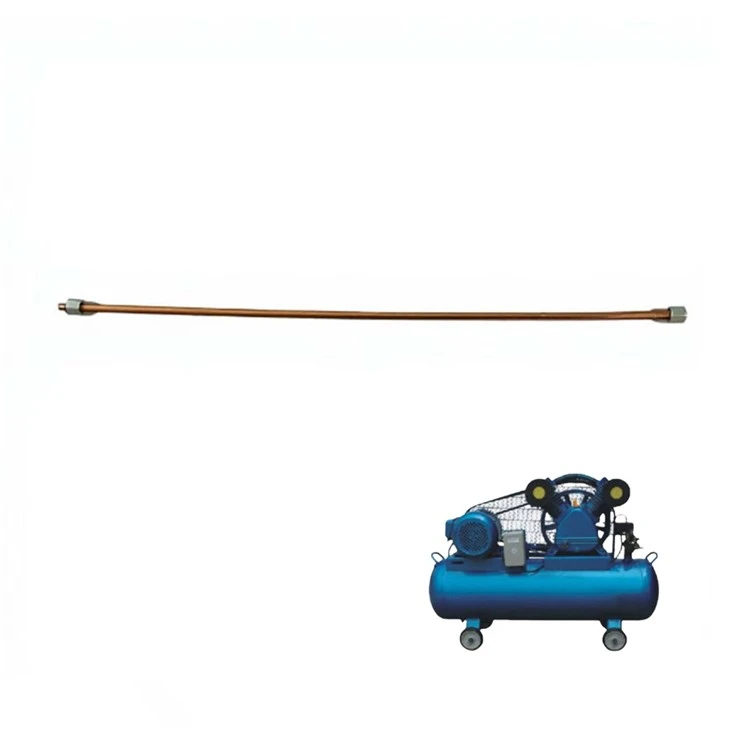

6mm x 500mm High-Pressure Pneumatic Signal Conduit
with Single-Anchor Interface
Industrial-spec fluid transmission tube featuring a copper-plated ductile matrix for precision pressure-switch synchronization.
Air compressor 12mm * 500mm
Copper-plated strip natural color heat sink
The 6mm × 500mm high-pressure metal tube is a precision pneumatic component engineered for stable signal and pressure transmission on piston air compressors. Built with high-ductility alloy steel substrate, it delivers accurate pressure transfer between the cylinder manifold, unloader valve and pressure switch, ensuring synchronized pneumatic system operation.
Finished with heavy-duty electro-copper plating, this conduit features excellent thermal stability and full resistance to moisture-induced oxidation and surface degradation. Its flexible structural design allows smooth routing within compact, confined engine compartments, maintaining complete pneumatic tightness through repeated high-frequency start-stop compressor cycles.
Technical Profiles & Materials
Ductile Metallurgical Matrix: The conduit is extruded from a high-purity ductile alloy, engineered to facilitate tight-radius manual shaping without inducing micro-fracturing or volumetric flow restriction.
Single-Anchor Coupling Logic: Engineered with a reinforced single-nut interface and a precision-flared end, designed for high-torque manual installation and a fail-safe seal against unloader-valve ports.
Vibration-Neutral Structural Stability: The 6mm bore architecture is optimized to dissipate reciprocal pneumatic surges, ensuring a stable signal pressure that eliminates pressure-switch "flutter" during heavy-duty operational intervals.
Technical Specifications
| ITEM | DETAILS |
| Type | Pneumatic Unloader Signal Tube |
| Application | Air Compressor Control / Unloader |
| Code | 1401301 |
| Material | Copper-Plated Alloy Steel |
| Operational PSI | Rated: 1.5 MPa / Peak: 2.0 MPa |
| Brand Name | SeaSummer |
| Dimensional Metrics | OD: 6 mm / Length: 500 mm |
| Delivery Time | 30 Days |
| Packaging | Cardboard packaging |
Products Application
Systematic Unloader-Switch Synchronization
Specifically configured as the primary pressure-link between the check-valve and the automated pressure switch. It ensures the rapid venting of internal cylinder pressure, facilitating a zero-load motor start.
Compact Powerhead Fluid Logistics
Ideal for oil-free and direct-drive compressors requiring high-flexibility signal lines. Its 500mm span allows for anatomical routing around the motor housing, maintaining factory-grade control logic in restricted spaces.
OEM Aftermarket Maintenance Protocols
An essential structural pneumatic component for professional repair centers. Its high-spec copper finish and standardized fitting provide a reliable replacement for original tubes, ensuring consistent operational safety for global tool fleets.
