Brush Cutter Needle Valve Set

Brush Cutter Needle Valve Set

SKU: 2501213

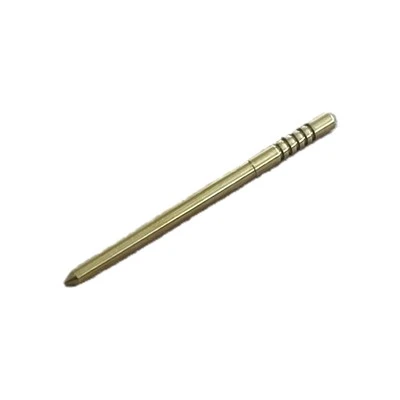

Valve Structure: CNC-turned H62 brass body with grooved metering lever tail
Sealing Tip: Fuel-resistant Viton (FKM) synthetic rubber conical tip
Engine Matching: Honda GX22, GX25, GX31, GX35, UMK425, UMK435, and universal 23cc–52cc trimmers
Commercial Terms: Brand: SeaSummer | Delivery Time: 30 Days | Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of brush cutter needle valve set in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

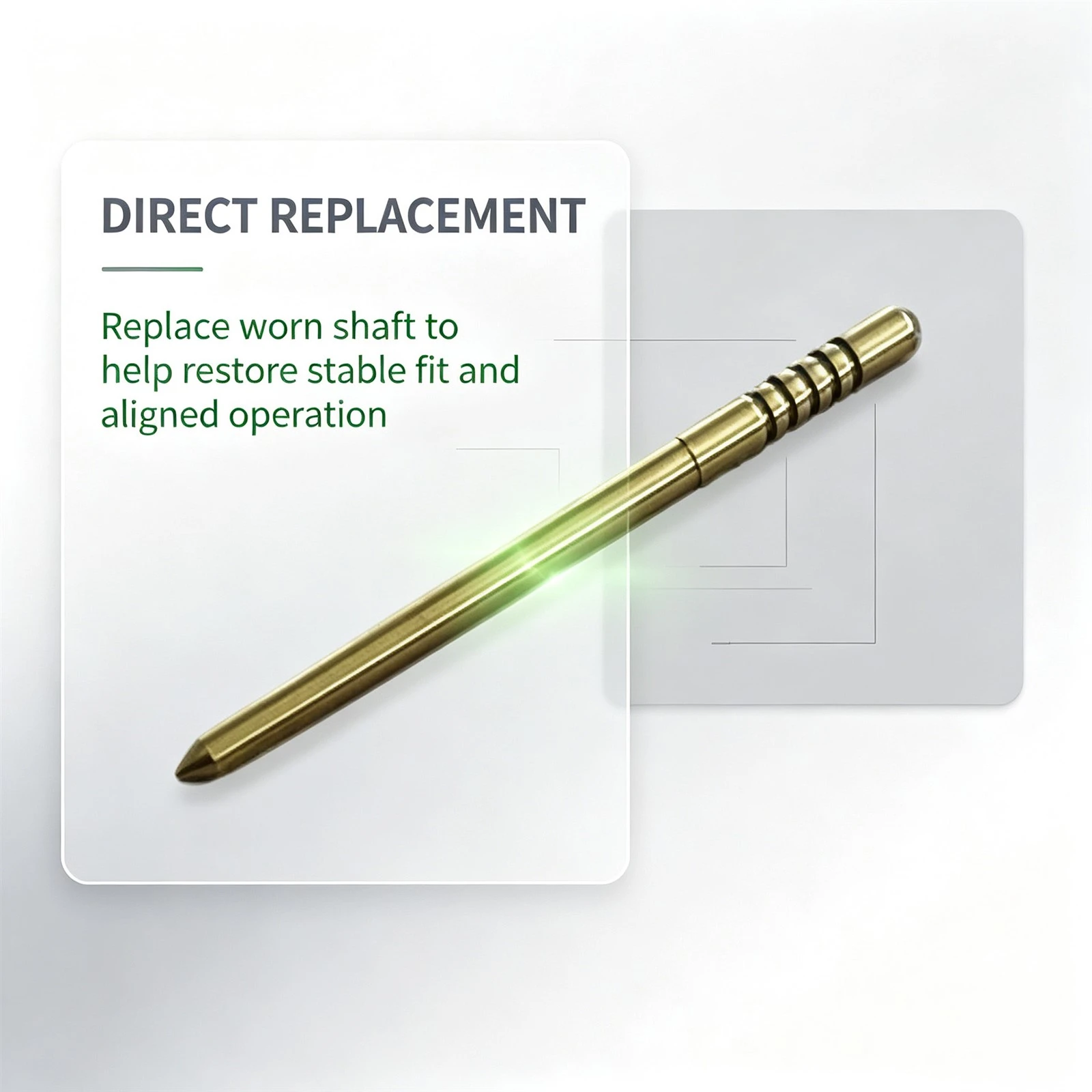

Brush Cutter Carburetor Inlet Needle Valve Set

Precision Fuel Metering Needle with Viton Sealing Tip for Small Utility Engines



product-1024-1024

Mechanical Function and Fuel Metering

The inlet needle valve sits directly beneath the carburetor metering lever, controlling fuel flow into the metering chamber. When the engine draws fuel, internal chamber vacuum pulls the diaphragm down, pivoting the metering lever to lift the needle off its brass seat. As fuel fills the chamber, the diaphragm relaxes and the lever spring pushes the needle back down to shut off inflow.

The tip uses molded Viton rubber ground to a precise cone. It forms a tight seal against the brass seat even under low spring tension, preventing fuel seepage through the main jet into the air filter housing when the trimmer is turned off.

The body is turned from H62 brass alloy to ensure smooth travel in the carburetor guide bore without sticking. Grooves machined around the tail hold the slotted fork of the metering lever securely. Both the brass body and Viton tip resist swelling from E10/E15 ethanol gasolines and 2-stroke oils.







Technical Specifications





Item Specification
Product Carburetor Inlet Needle Valve Set
SKU 2501213
Brand SeaSummer
Body Material H62 Brass Alloy
Tip Material Fuel-Resistant Viton (FKM)
Carburetor Type Diaphragm and Float Carburetors
Engine Fitment Honda GX22, GX25, GX31, GX35, UMK425, UMK435, 23cc–52cc Trimmers
Delivery Time 30 Days
Packaging Cardboard packaging

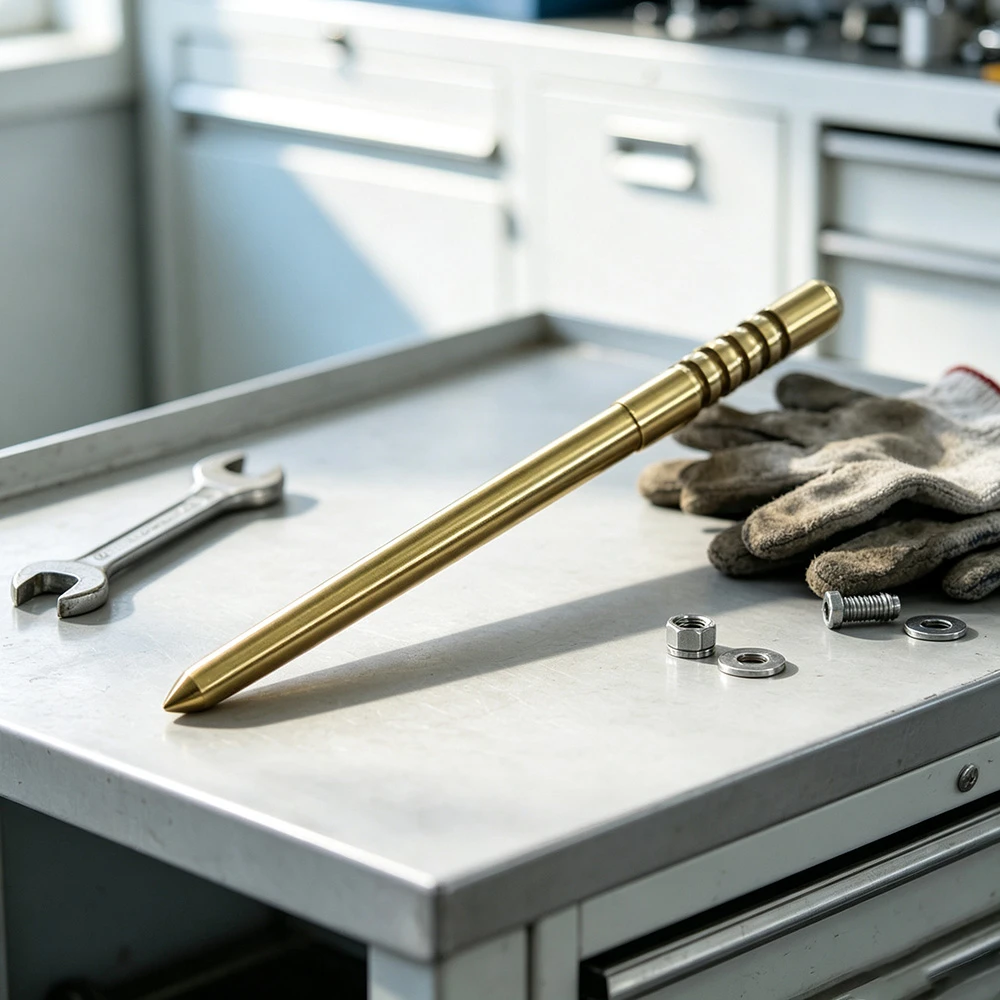

Products Application





product-816-816

Tip and Shank Check

Check the Viton tip under light before assembly. The cone must be smooth without ring grooves, and the shank must be clean of burrs.

product-816-816

Assembly Steps

Clean the metering chamber and inspect the brass seat with a magnifying loupe.

Place the needle vertically into the seat bore with tweezers.

Slide the slotted fork of the metering lever into the groove on the needle tail.

Set the spring under the lever, insert the pivot pin, and tighten the retaining screw.

Check lever height. The top of the lever arm should sit level with the carburetor chamber rim before fitting the diaphragm.

product-816-816

Common Issues Solved

Replacing a worn or indented needle fixes fuel dripping from the air cleaner, hard warm restarts, and erratic idle hunting.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



About Us





Jiaxing Norsun Trading Co., Ltd.

As an established supplier of outdoor power equipment and pneumatic components, Jiaxing Norsun Trading Co., Ltd. delivers streamlined B2B sourcing for global distributors. Backed by 200+ audited manufacturers in China, we ensure factory-direct wholesale pricing, strict incoming and outgoing inspection, and steady volume supply.

One-Stop Sourcing Hub

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Direct Factory Network

200+ TRUSTED MANUFACTURING PARTNERS ACROSS CHINA

Production process


product-496-372
Injection MoldingPlastic & Rubber Parts
product-496-372
CNC Lathe TurningHigh-Precision OD/ID
product-496-372
CNC Machining CenterMulti-Axis Milling
-5
Precision TappingCalibrated Thread Pitch
product-496-372
Clean Assembly LineSemi-Automated Line
product-496-372
100% QC InspectionOptical & Pressure Test
product-496-372
Protective PackagingCardboard & Rust-Proof
-6
Warehouse & LogisticsFast Dispatch & Storage

Quality Assurance & Traceability: Every pneumatic component is manufactured under strict ISO quality management standards-from raw material inspection and CNC machining to thread gauge verification and 100% pressure leak testing



Expo experience





product-1500-2000



Customer Reviews





product-1500-2000





Practical Questions & Ordering





Q: Which engines use this needle valve?

A: It fits Honda GX22, GX25, GX31, and GX35 mini 4-stroke engines (UMK425/435 trimmers) and common 23cc–52cc 2-stroke diaphragm carburetors.

Q: What causes carburetor flooding after cleaning?

A:Flooding is usually caused by an indented rubber needle tip that fails to seal, dirt trapped in the seat, or a metering lever set too high.

Q:How is the order packaged?

A:Parts are packed in sealed protective bags inside export Cardboard packaging. Standard delivery lead time is 30 Days.
