MS661 Brake Hand Guard

MS661 Brake Hand Guard

SKU: 0102121
OEM Ref: Chain Brake Hand Guard: 1144 790 9100 (11447909100)
Fitment: STIHL MS661, MS661C, MS661 C-M, MS651 (91.1cc Professional Heavy Logging Series)
Safety Mechanism: Dual Kickback Protection: Left-Hand Flying Debris Barrier + Inertia/Manual Brake Band Actuation Lever
Commercial Terms: Brand: SeaSummer | Delivery Time: 30 Days | Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of ms661 brake hand guard in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

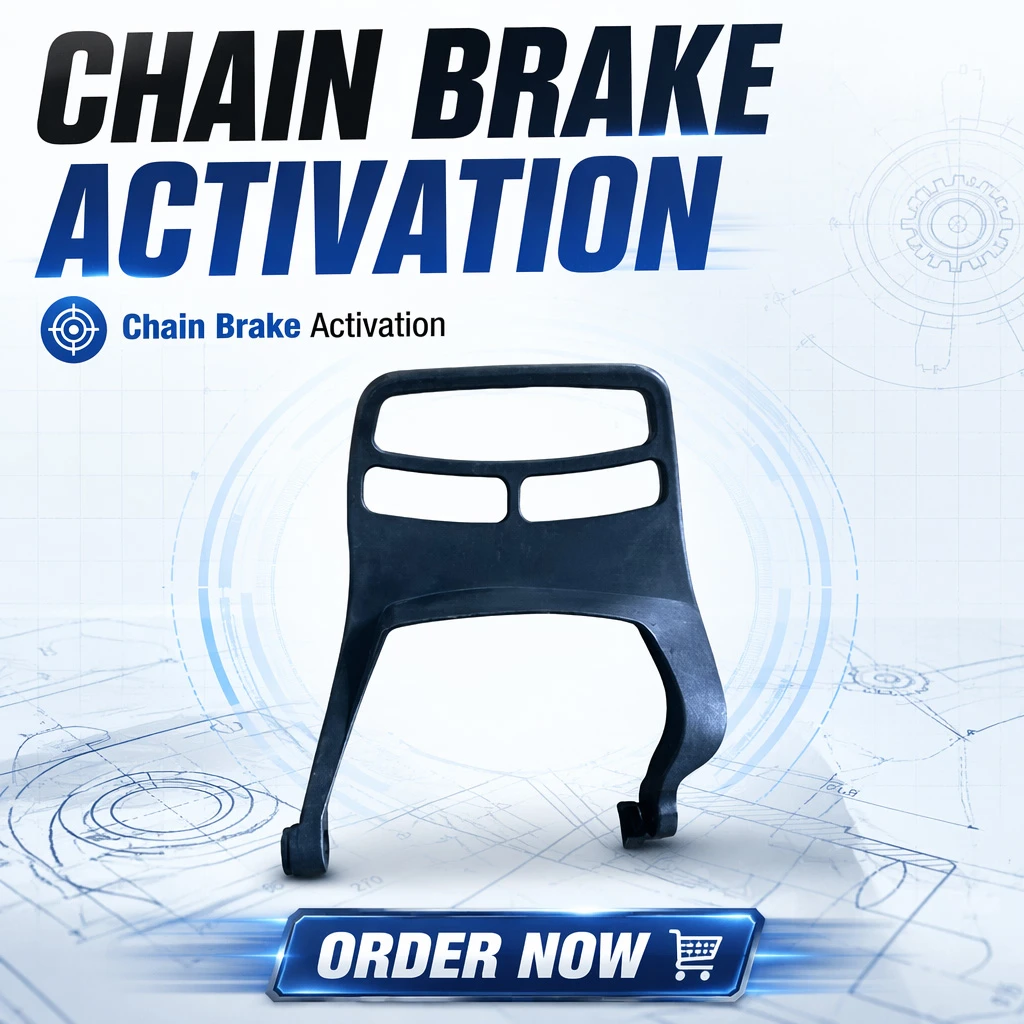

STIHL MS661 / MS651 Front Chain Brake Hand Guard

Kickback Safety Barrier & Emergency Brake Actuation Lever (1144 790 9100)



product-1024-1024

Product Introduction

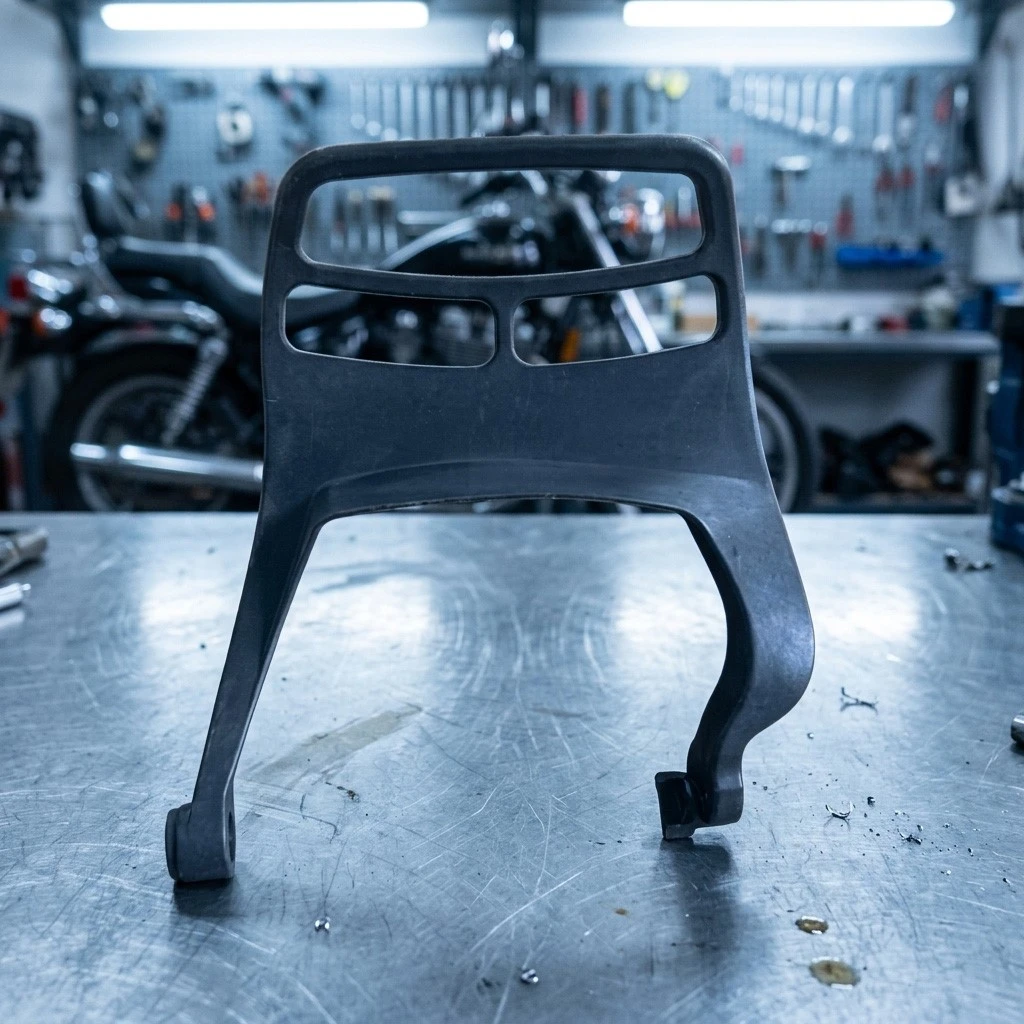

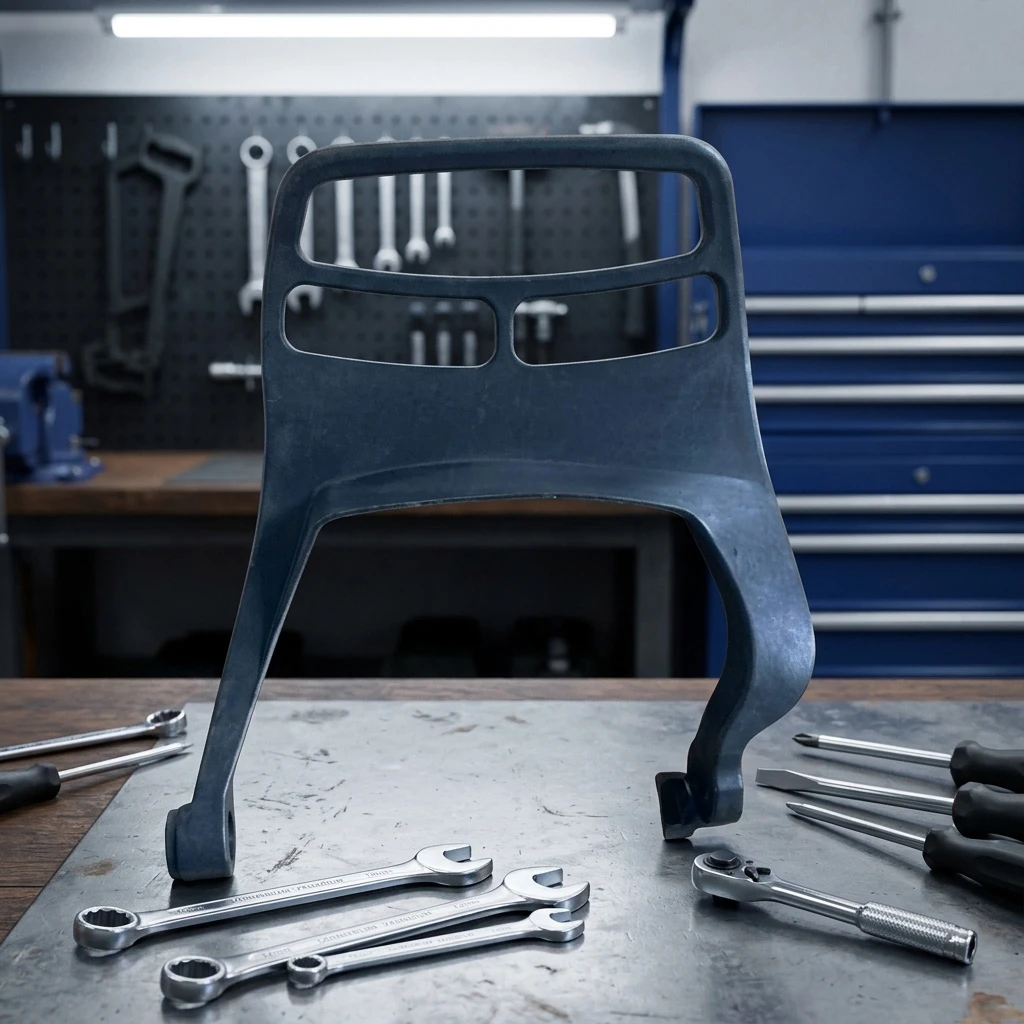

This front chain brake hand guard serves as the primary operator safety barrier and emergency brake trip lever on STIHL MS661 and MS651 chainsaws. Mounted forward of the front wrap handlebar, it shields the operator's left hand from flying wood chips and branches while actuating the steel brake band during sudden kickback events.

Molded from glass-fiber reinforced polymer (PA66-GF30), the guard retains high flexural toughness without brittle shattering in temperatures ranging from -35°C to +90°C. Forward displacement of the lever snaps the internal cam past its center detent, clamping the brake band around the clutch drum to stop high-speed chain rotation in milliseconds. Pulling the lever rearward resets the mechanism with a crisp tactile click.







Technical Specifications





Parameter Specification
Product Name Front Chain Brake Safety Guard & Actuation Lever
SKU 0102121
Brand SeaSummer
OEM Reference 1144 790 9100
Compatible Chainsaws STIHL MS661, MS661C, MS661 C-M, MS651
Primary Safety Function Physical Hand Barrier & Inertia Kickback Brake Trigger
Operation Mechanism Push Forward: Brake Engagement / Pull Back: Brake Reset
Material Formulation PA66-GF30 High-Impact Glass-Fiber Reinforced Polymer
Fatigue Life Rating Tested for ≥ 15,000 Rapid Brake Actuation Cycles
Thermal Operating Window -35°C to +90°C Sub-Zero Logging Durability
Chassis Connection Dual Pivot Bosses with E-Clip & Brake Cam Link Interface
Delivery Time 30 Days
Packaging Cardboard packaging



Products Application





product-816-816

Pre-Assembly Inspection

Inspect the pivot pin holes and brake link contact slots for dimensional conformity. Ensure the polymer body is straight and free of molding stress cracks around the lower mounting ears.

product-816-816

Installation Guidelines

Remove the clutch cover and ensure the main brake spring is unlatched before servicing.

Remove the retaining E-clip and slide the damaged hand guard off the crankcase pivot post.

Clean accumulated sawdust, dried oil, and debris from the brake toggle and cam surface.

Apply a light film of grease to the pivot boss and slide the new hand guard into position.

Reconnect the internal brake linkage lever and secure with the factory E-clip.

Manually cycle the guard forward and backward to confirm crisp, positive spring-loaded detents.

product-816-816

Operational Warning

Never operate a chainsaw if the brake hand guard is cracked, loose, or fails to lock the chain. Do not accelerate the engine while the chain brake is engaged; running at full throttle against a locked brake will overheat the clutch drum and destroy crankcase housing components within seconds.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



About Us





Jiaxing Norsun Trading Co., Ltd.

As an established supplier of outdoor power equipment and pneumatic components, Jiaxing Norsun Trading Co., Ltd. delivers streamlined B2B sourcing for global distributors. Backed by 200+ audited manufacturers in China, we ensure factory-direct wholesale pricing, strict incoming and outgoing inspection, and steady volume supply.

One-Stop Sourcing Hub

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Direct Factory Network

200+ TRUSTED MANUFACTURING PARTNERS ACROSS CHINA

Production process


product-496-372
Injection MoldingPlastic & Rubber Parts
product-496-372
CNC Lathe TurningHigh-Precision OD/ID
product-496-372
CNC Machining CenterMulti-Axis Milling
-5
Precision TappingCalibrated Thread Pitch
product-496-372
Clean Assembly LineSemi-Automated Line
product-496-372
100% QC InspectionOptical & Pressure Test
product-496-372
Protective PackagingCardboard & Rust-Proof
-6
Warehouse & LogisticsFast Dispatch & Storage

Quality Assurance & Traceability: Every pneumatic component is manufactured under strict ISO quality management standards-from raw material inspection and CNC machining to thread gauge verification and 100% pressure leak testing



Expo experience





product-1500-2000



Customer Reviews





product-1500-2000





Practical Questions & Ordering





Q:Why is it prohibited to operate with a cracked hand guard?

A: The hand guard is an essential safety trigger during kickback. If the lever is cracked or loose, it will flex instead of tripping the brake toggle, leaving the user unprotected against rotational bar throw.

Q: Does this hand guard fit older STIHL 066 / MS660 chainsaws?

A:No. The MS661 utilizes a redesigned crankcase pivot structure (OEM 1144 790 9100). The 066/MS660 series uses part number 1122 790 9101, which has different pivot hole spacing.

Q: How do I verify the hand guard is correctly installed?

A:Pushing the lever forward toward the bar should trigger a loud mechanical click as the brake engages. Pulling it backward toward the handlebar should release the brake cleanly without binding.



Q: What is the standard packaging and lead time?

A:Supplied in individual polybags inside master export Cardboard packaging. Standard production delivery time is 30 Days.
