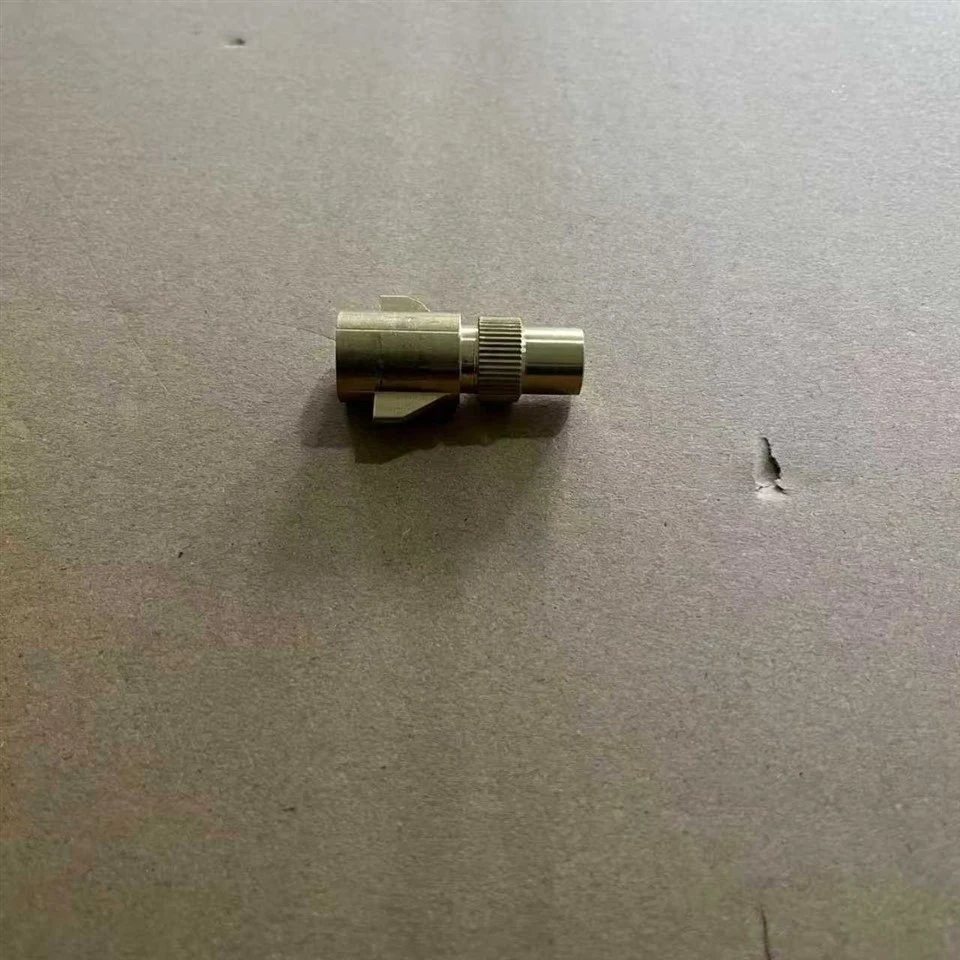

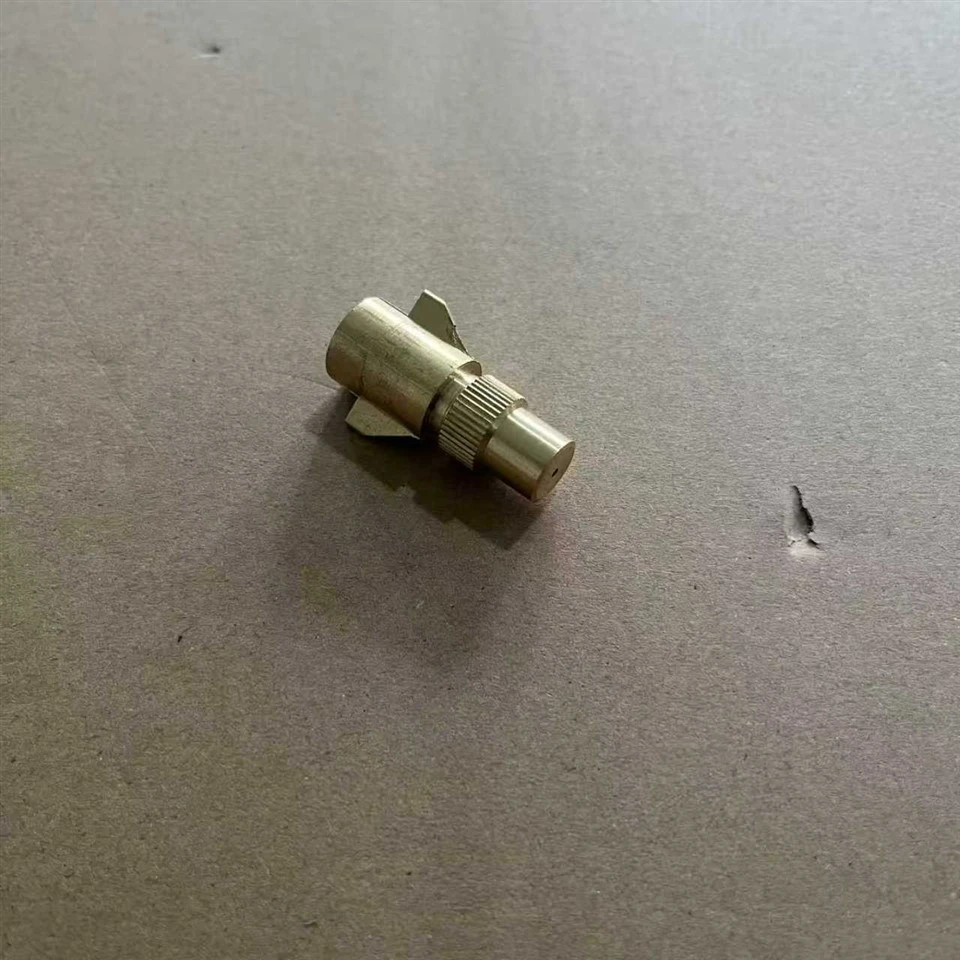

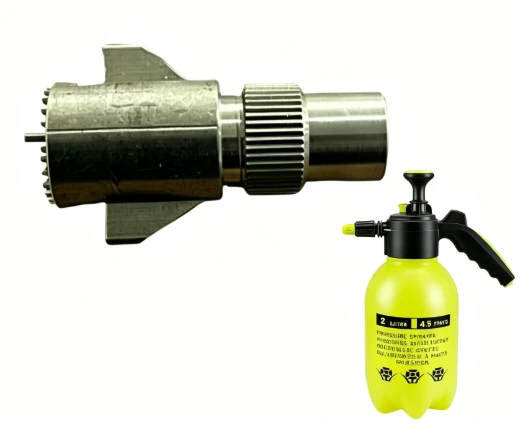

2L Sprayer Nozzle

2L Sprayer Nozzle

Item Code / SKU: 0403111 (16mm Brass Sprayer Nozzle) Fitment: Standard 1.5L, 2.0L & 3.0L Handheld Pump Pressure Sprayers (16mm Female Thread) Material: Solid Machined Brass with Anti-Slip Diamond-Knurled Outer Sleeve (21mm OD) Pattern Range: Stepless Needle-Valve Adjustment: Wide Conical Fog ↔ 3–5m Pinpoint Stream Commercial Terms: Brand: SeaSummer | Delivery Time: 30 Days | Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of 2l sprayer nozzle in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

16mm Thread Solid Brass Adjustable Nozzle for 1.5L–3L Handheld Pressure Sprayers

Direct-Fit Solid Brass Replacement Tip with Integrated Rubber Gasket & Stepless Misting/Jet Flow Regulation (SKU: 0403111)



product-1024-1024

Engineering Profile & Working Principles

Factory-molded plastic nozzles on 2-liter garden pressure sprayers break down quickly under pressure cycles and sun exposure. Common field failures include cross-threaded plastic collars, split bodies under 3-bar pump pressure, and eroded internal swirl chambers that produce coarse, dripping water streams instead of a true mist.

This replacement nozzle is machined from solid H59/CW617N brass bar stock. It threads directly onto standard 16mm (approx. 5/8") plastic spray lances, using a captive flat rubber gasket to achieve a drip-free seal under standard hand-tightening torque.

Flow calibration is handled by an internal brass metering needle. Rotating the 21mm knurled outer barrel adjusts the orifice clearance:

Clockwise (Closed Down): Produces an ultra-fine conical fog pattern for delicate foliage humidification, foliar feeding, and greenhouse pest control without washing out loose potting soil.

Counter-Clockwise (Opened Up): Converts the output into a concentrated, high-velocity stream capable of reaching 3 to 5 meters for targeted weed treatment and deep root watering.







Technical Specifications





Parameter Specification
Product Type Handheld Pneumatic Sprayer Brass Nozzle Assembly
Part Number / SKU 0403111
Brand Identifier SeaSummer
Sprayer Compatibility Standard 1.5L, 2.0L, 2.5L & 3.0L Garden Pressure Bottles (Eva, Biba, Ingco, etc.)
Mounting Interface 16 mm (approx. 0.63 in) Standard Female Thread
Outer Collar Diameter 21 mm (0.83 in) with Diamond-Pattern Knurling
Body Metallurgy Solid High-Strength Brass (Corrosion, UV & Chemical Proof)
Regulation Mechanism Internal Threaded Needle Valve with Stepless Barrel Rotation
Spray Spectrum Full Cone Micro-Mist ↔↔ Narrow Fan ↔↔ Long-Range Direct Jet
Internal Seal High-Elasticity Flat Rubber Washer (Pre-Installed)
Working Pressure 1.5 bar to 3.5 bar (Standard Hand-Pump Range)
Production Lead Time 30 Days
Master Packaging Cardboard packaging




Products Application





product-880-752

Fitment & Thread Check

Check the 16mm internal thread depth and pitch with vernier calipers to confirm clean, burr-free entry.

Verify the internal flat rubber gasket is seated flat in the base recess.

Test-rotate the knurled adjustment ring to confirm smooth needle movement without radial wobble.

product-880-752

Step-by-Step Installation

Depressurize the bottle by pulling the thumb relief valve or spraying until the tank is empty.

Unscrew the damaged plastic tip from the wand end.

Clean any dried mineral crust or chemical residue from the male plastic threads.

Thread the brass nozzle onto the 16mm wand by hand until it seats firmly against the internal gasket.

Do not use pliers or wrenches-excessive torque will strip the plastic lance threads.

Pump the tank to working pressure (15–20 strokes) and rotate the knurled collar to test the mist-to-stream transition.

product-880-752

Maintenance & Cleaning Rules

Clearing Orifice Blockages: If mineral scale or grit distorts the spray pattern, unscrew the outer brass barrel and clean the orifice with a soft nylon brush or wooden toothpick. Never use steel sewing needles, wire, or drill bits, as metal tools will scratch the brass orifice and permanently ruin the mist cone.

Chemical Rinse: After spraying fertilizers or pesticide concentrates, fill the tank with 200 ml of clean water and spray for 20 seconds to purge chemical salts from the brass needle threads.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



Practical Questions & Ordering





Q:Will this brass tip fit standard 2L and 3L pressure spray bottles?

A: Yes. The 16mm (0.63") female thread is the universal standard across major 1.5L, 2.0L, and 3.0L handheld pneumatic pump sprayers.

Q:Can the spray pattern be adjusted while the bottle is pressurized?

A:Yes. The diamond-knurled barrel provides positive grip even with wet or gloved hands, allowing stepless adjustment from fine mist to jet stream mid-spray.

Q: How does solid brass outperform the stock plastic nozzle?

A:Solid brass is impervious to UV embrittlement, chemical swelling, and thread stripping, keeping its calibrated orifice shape over years of daily greenhouse service.



Q: What are the wholesale export packing details and standard lead times?

A:Each brass nozzle head is individually packed in a protective carton or blister pack, then boxed into master export Cardboard packaging. Standard production delivery time is 30 Days.
