| Brand Name | SeaSummer | SKU | 0244-Ba-70100000-01 |
| ID | 1.125" | Pulley | 6.3" |
| Rotation | CCW | Belt |
A/B Belt |
| Bolt Torque | 205 ft. lbs. | Maximum Engine RPM | 3,600 RPM |
| Voltage Insulation | 1000v | Temperature | Up to 370°F (188°C) |
| Net Weight | 5kg | Carton Dimensions | 68 x 46 x 26 cm |
| MOQ | 100pcs | Customized Services | OEM |
| Delivery Time | 30 days, volume-dependent | Packaging | Cardboard packaging |
Products Description

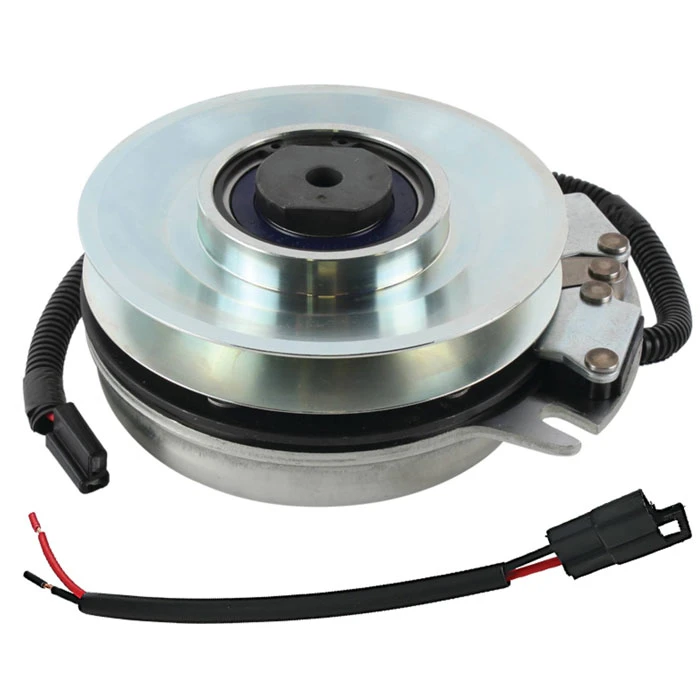

Lawn Mower Tractor PTO Clutch Bad Boy - 070-1000-00
The 070-1000-00 is the primary clutch of Bad Boy's wide-deck commercial and prosumer platform - the family that powers the Outlaw and Lightning series with 54-inch, 60-inch, and 72-inch fabricated decks behind 25–35 HP Kohler, Kawasaki, and Briggs Vanguard engines. The 1-1/8-inch bore fits the large crankshaft output of these big-block V-twins, and the 6-5/16-inch pulley provides the belt wrap and contact area required for wide-deck belt drives under sustained load. The 200–205 ft-lb torque rating places this clutch in the full commercial torque class - the engagement authority to spin a 72-inch deck through dense turf without slip. Critically, the 070-1000-00 is not interchangeable with the Bad Boy 070-0056-00 family - a different clutch generation with different pulley diameter and specifications.
Vehicle Compatibility
Applications| Bad Boy Mowers | CZT Commercial Series |
| Bad Boy Mowers | Lightning 5200, 6000, 7200 |
| Bad Boy Mowers | Outlaw 5400, 6100, 7200 |
| Bad Boy Mowers | Outlaw Extreme Series |
| Bad Boy Mowers | Outlaw XP Series |
| Bad Boy Mowers | Pup 4800, 5000, 5200, 6000, 7200 |
| Bad Boy Mowers | ZT Series |
Replacement Numbers
| Bad Boy | 070-1000-00 |
| Xtreme | X0244 |
Products Advantages
Why Choose Our Electric PTO Clutch over Generic Replacements?
Our Solution:
Warner 5218-220 Commercial Specification
This clutch is built to the Warner 5218-220 specification: 200 ft-lbs of torque at a 6.53-amp current draw, with a 1-1/8-inch bore and 6-5/16-inch pulley. The 5218-series coil provides the thermal capacity for sustained commercial engagement and the holding torque for 72-inch deck loads. These are the exact specifications Warner engineered for the Bad Boy commercial path - a clutch that matches the machine's electrical budget while delivering full commercial holding force.
070-1000-00 vs 070-0056-00 - Correct Family Selection
Bad Boy uses two distinct clutch families that are frequently confused: the 070-1000-00 (larger 6.31-inch pulley, CCW, Warner 5218-220) and the 070-0056-00 (a separate family with different pulley and specifications). Ordering the wrong family means pulley-to-deck mismatch and belt misalignment on installation. This clutch is the 070-1000-00 variant - the correct answer for Outlaw, Lightning, Pup, CZT, and legacy ZT machines - with the part-number distinction documented so owners and shops select the right family the first time.
6-5/16-Inch Pulley for Wide Bad Boy Decks
The 6-5/16-inch pulley is matched to the belt-drive geometry of Bad Boy's 54-inch, 60-inch, and 72-inch fabricated decks. The larger diameter provides the belt wrap and contact surface to drive a wide triple-blade deck without slip under load - the geometry the Outlaw and Lightning platforms were engineered around. An undersized pulley sacrifices blade-tip speed and accelerates belt wear; the factory-matched OD keeps the deck cutting at Bad Boy's engineered velocity.
Multi-Brand Warner 5218 Coverage
Beyond Bad Boy, this clutch path serves select Ferris (4164976), Stens (255-7750), and other machines on the shared Warner 5218-220 architecture. For dealers and shops servicing mixed commercial brands, one SKU covers the Bad Boy Outlaw/Lightning/Pup/CZT/legacy ZT population plus the shared Warner applications - simplifying inventory and eliminating cross-referencing confusion across multiple OEM part numbers.
Quality and Craftsmanship Details
Products Package
About Us
As a premier garden machinery parts supplier, Jiaxing Norsun Trading Co., Ltd. bridges global distributors with over 100 vetted China manufacturers. We streamline your B2B supply chain through strict quality control, flexible production, and factory-direct wholesale pricing. Partner with us for reliable, high-volume sourcing of precision-engineered outdoor power equipment components.
Trusted Partnership Power
YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS
Verified Factory Excellence
BACKED BY 200+ TRUSTED FACTORY PARTNERS
Production process
Quality control
Expo experience
Customer Reviews
FAQ
Q: How do I select the correct electric PTO clutch for my specific mower model?
A:To guarantee a 100% exact fit, you need to verify four critical mechanical dimensions:1. Shaft Bore Size: Common sizes are 1" (25.4 mm) or 1-1/8" (28.6 mm).2. Pulley Outer Diameter (OD) & Belt Width: Matches your deck's V-belt size (e.g., 1/2" or 5/8").3. Rotation Direction: Clockwise (CW) or Counter-Clockwise (CCW) when viewing from the pulley end.4. OEM Cross-Reference: Compare with original numbers (Warner, Ogura, John Deere, etc.).If you provide us with your engine model or original part number, our engineering team will cross-check our database and provide a 3D fitment drawing for confirmation.
Q: What measures are taken to prevent the coil from burning out during heavy-duty operation?
A: Our electric PTO clutches are built with Class H insulated copper wire, rated for temperatures up to 180°C (356°F). Combined with dual-sealed C3 high-speed bearings and dynamic balance calibration, our design reduces friction-induced heat, significantly lowering the risk of thermal coil failure under prolonged high-load conditions.
Q: What is your quality inspection protocol before shipment?
A:Every single clutch (100% full inspection, not random sampling) passes through our 4-step automated testing rig before packaging:
1. Coil Resistance & Amperage Test: Verifies electrical integrity.2. Static Torque Capacity Test: Ensures proper torque engagement under load.3. Air Gap Precision Check: Factory preset to optimal clearance (0.012" - 0.020") for immediate response.4. Dynamic Balance & Noise Level Test: Ensures vibration-free operation.
Q: Do you offer custom OEM/ODM development for specialized lawn equipment manufacturers?
A: Yes. We regularly partner with OEM machine builders and private-label brand owners. Our customization capabilities include:Custom Wiring Harnesses: Wire gauge, sleeve protection (corrugated/braided), and waterproof connector types (Deutsch, Molex, Amphenol).Custom Pulley Configurations: Single/double groove, specific ODs, and anti-corrosion plating.Branding & Packaging: Laser-etched logos/part numbers on the steel body, custom color box packaging, and barcoded master cartons.
