| Brand Name | SeaSummer | SKU | 0003-Se-160889-12 |
| ID | 1" | Pulley | 5.345" |
| Rotation | Counter Clockwise | Belt | 1/2" or 5/8" Belt |
| Bolt Torque | 80 ft. lbs. | Maximum Engine RPM | 3,600 RPM |
| Voltage Insulation | 1000v | Temperature | Up to 370°F (188°C) |
| Net Weight | 5kg | Carton Dimensions | 68 x 46 x 26 cm |
| MOQ | 100pcs | Customized Services | OEM |
| Delivery Time | 30 days, volume-dependent | Packaging | Cardboard packaging |
Products Description

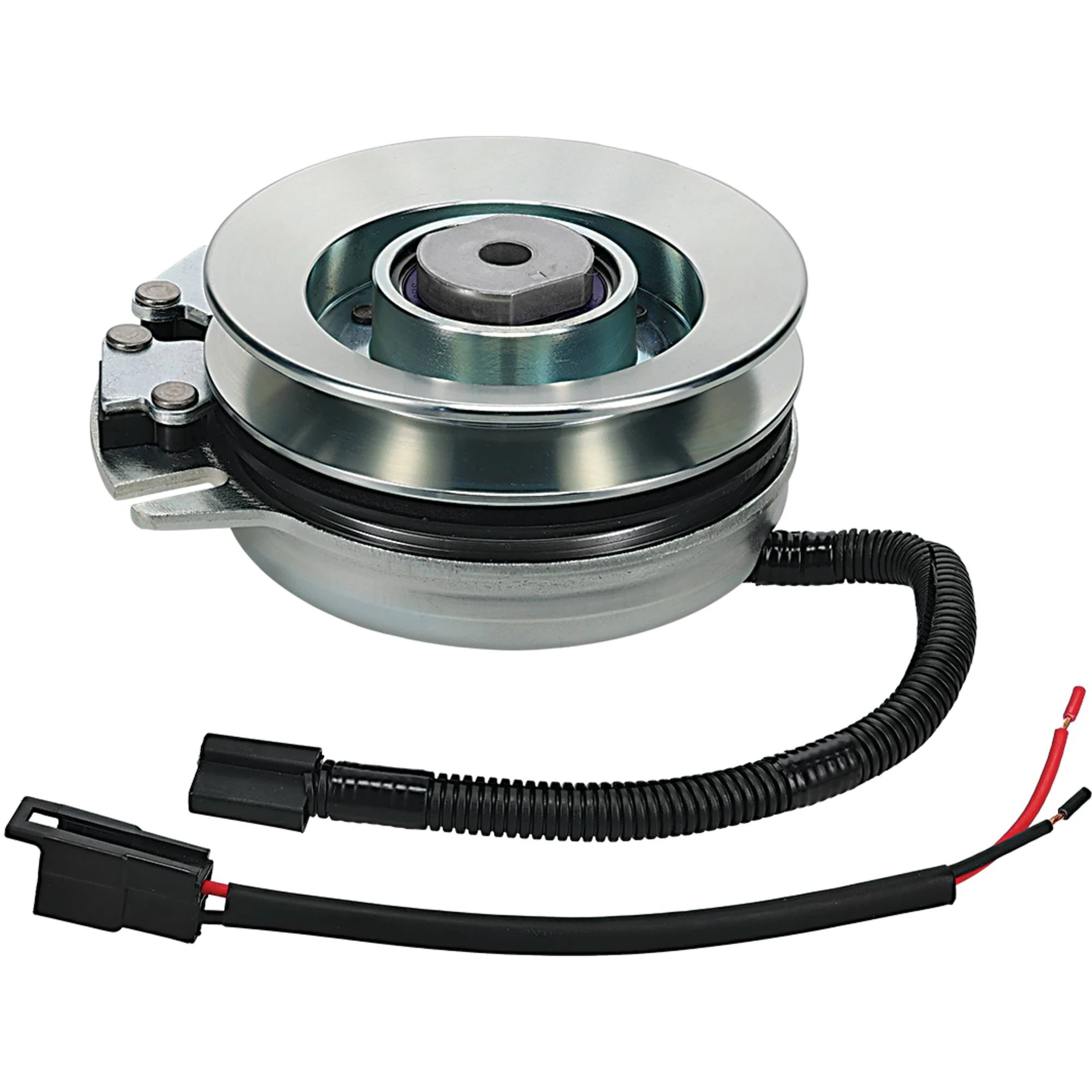

PTO Clutch for Sears Craftsman 532160889
This electromagnetic power‑take‑off assembly serves as a cross‑brand swap‑in component for a huge array of consumer‑grade riding lawn tractors and entry‑level zero‑turn mowers. It comes configured with a 1‑inch shaft bore, 5.345‑inch diameter pulley and runs counter‑clockwise. Its pulley groove accepts either 1/2‑inch or 5/8‑inch drive belts, and it carries an 80 ft.lbs torque rating built for light‑to‑medium residential cutting cycles.
Vehicle Compatibility
Applications
| Ariens | EZR Series |
| Ariens | LT and YT Series |
| Ariens | Mini Zoom Series |
| Ariens | Sierra Series |
| Ariens | Sport Zoom Series |
| Ariens | Zoom Series |
| Cub Cadet | 1300, 13A-130F100 |
| Cub Cadet | 1405, 13A-145F100 |
| Cub Cadet | Plus Many More! |
| Dixon | Too Many To List |
| Exmark | Quest 42" Deck sn 790,000 and up |
| Gravely | 1440 Series |
| Gravely | GLT 440 |
| Gravely | GLT 448 |
| Gravely | Mini ZT Series |
Replacement Numbers
| Ariens | 03643100 |
| AXXOM | 892595 |
| AYP | 53740 |
| AYP | 160889 |
| AYP | 532160889 |
| Bolens | 1772388 |
| Bolens | 717-1459 |
| Bolens | 917-1459 |
| Bolens | GW-1772388 |
| Craftsman | 53740 |
| Craftsman | 160889 |
| Craftsman | 1772388 |
| Craftsman | 03643100 |
| Craftsman | 7053740 |
| Craftsman | 532160889 |
Products Advantages
Why Choose Our Electric PTO Clutch over Generic Replacements?
Our Solution:
80 ft.lbs Torque Rating Matches Residential‑Grade Mower Demands
Optimized for household lawn‑cutting workloads, the 80 ft.lbs torque threshold delivers consistent blade drive power for routine yard maintenance. Its friction interface is calibrated to avoid abrupt jolts on engage / disengage cycles and lessen slip risk under regular cutting loads. Not built for continuous heavy‑duty commercial‑grade operation.
Multi‑Width Pulley Supports Two Common Belt Sizes
The precision‑machined 5.345‑inch pulley accommodates both 1/2‑inch and 5/8‑inch belts. The bearing housed within the pulley can be serviced individually. If noise or rotational slack emerges over operating hours, technicians may replace only the bearing element instead of discarding the full clutch assembly, lowering long‑run repair expenses.
Plug‑Compatible Electrical Connection Reduces On‑Site Rework
Factory‑fitted wiring connector follows original equipment pin configuration. No splicing or wire modification is necessary during installation. The wiring construction adds basic defence against grass debris and damp outdoor conditions that frequently trigger electrical connection faults on older mowers.
Universal Mount Geometry Simplifies Cross‑Model Service Work
Bore dimension, rotation direction and mounting hole pattern replicate OEM specs. For qualified technicians and experienced DIY operators, removal‑and‑fit work follows standard service workflows without custom machining or adapter pieces.
Quality and Craftsmanship Details
Products Package
About Us
Our business focuses on aftermarket replacement components for consumer‑focused outdoor power machinery. We maintain cooperative ties with multiple qualified manufacturing facilities to supply parts for overseas repair workshops, local resellers and import merchants. Our workflow incorporates multi‑stage part validation, flexible batch‑size alternatives and factory‑origin price levels for global trade partners.
Trusted Partnership Power
YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS
Verified Factory Excellence
BACKED BY 200+ TRUSTED FACTORY PARTNERS
Production process
Quality control
Expo experience
Customer Reviews
FAQ
Q: How do I confirm this clutch will fit my lawn tractor?
A:Prior to ordering, verify these key physical parameters: 1‑inch inner bore size, counter‑clockwise rotation direction, 5.345‑inch pulley, support for 1/2‑inch / 5/8‑inch belts. Cross‑check against your original clutch OEM part code such as 532160889. If you send over your machine serial number or old‑clutch part marking, our technical staff can assist you with fitment cross‑check.
Q: What sort of usage does this 80 ft.lbs clutch suit?
A: This unit targets residential‑use riding tractors and entry‑level zero‑turn mowers for regular household yard‑maintenance tasks. It is not engineered for non‑stop heavy commercial landscaping operations. Actual working performance will also depend on belt condition and general machine health.
Q: Am I required to modify wiring during installation?
A:No extra wiring adjustments are needed for matching machines. This unit uses direct‑plug connectors matching OEM layout. Still, inspect connection points during periodic mower maintenance to clear accumulated grass debris and dampness.
Q: Do special tools have to be purchased for installation?
A: Standard hand tools are sufficient for most compatible mower models. Since this is a power‑transmission safety‑related component, strictly follow your lawn‑machine official service manual for disassembly, mounting torque values and safety procedures.
