Sprayer Gun 60CM (53CM)

Sprayer Gun 60CM (53CM)

SKU / Model: 0403614 | 60CM / 53CM Long Lance Series
Material & Structure: Heavy-duty stainless steel barrel, solid brass core valve & high-impact polymer dual grips
Working Pressure: 1.5–4.0 MPa (15–40 Bar / 220–580 PSI, max burst rating 6.0 MPa)
Inlet Interface: Standard M14×1.5 / G1/4 thread with integrated anti-twist swivel joint
Spray Range & Angle: 5–10 m straight stream reach | 30°–80° stepless conical mist angle
Delivery Time: 30 Days
Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of sprayer gun 60cm (53cm) in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

Sprayer Gun 60CM (53CM)

High-Pressure Agricultural Power Sprayer Long Lance Gun with Stepless Brass Atomizing Nozzle



product-1024-1024

Extended Reach Geometry & Operator Chemical Isolation

Field agrochemical application in tall fruit orchards and dense crop canopies exposes operators to chemical bounce-back and drift. The SeaSummer 0403614 Long Lance Sprayer Gun features a rigid 60 cm (optional 53 cm) structural layout that extends the operator's physical working radius. By displacing the high-velocity discharge point away from the user, the extended stainless steel barrel significantly reduces inhalation hazards and skin exposure while eliminating the need for awkward reaching in elevated canopy spraying.

Stepless Rotary Brass Nozzle & Dynamic Plume Modulation

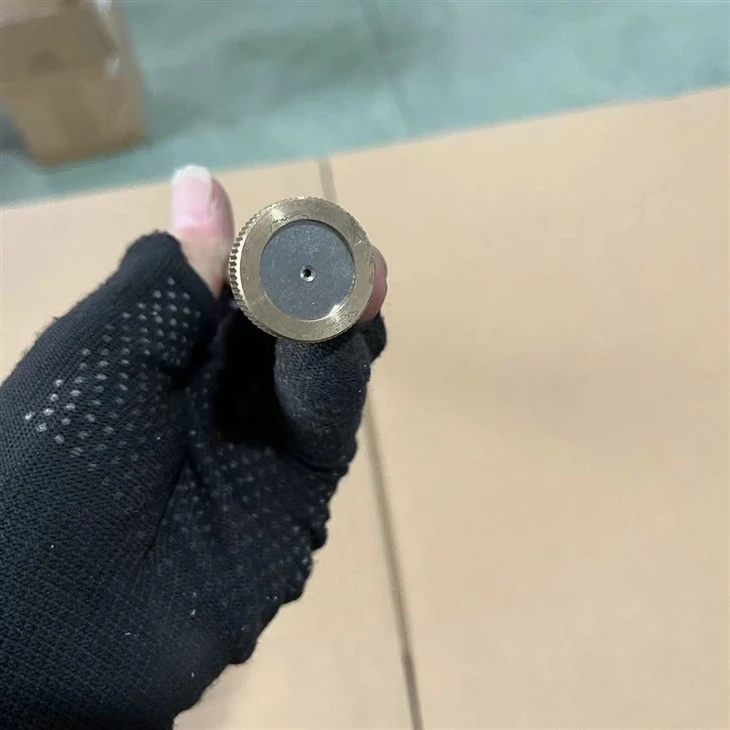

The front discharge assembly incorporates a precision-machined HPb59-1 solid brass nozzle housing an internal swirl core. Operators can seamlessly transition fluid output between a tight, long-range penetrating jet (5–10 meter throw) for high-canopy pest control and an ultra-fine, wide-angle conical fog (30°–80° dispersion) for full under-leaf coverage. The brass-on-brass internal throttling mechanism provides linear flow modulation without pressure surging across the 1.5–4.0 MPa operating range.

Ergonomic Dual-Grip Control & Integrated Anti-Kink Swivel

Extended spraying sessions demand fatigue-reducing ergonomics and reliable fluid routing. The 0403614 gun is engineered with an impact-resistant polymer dual-grip architecture: a rear contoured handle paired with an integrated mid-barrel forward stabilizer grip for balanced two-handed control under high reaction thrust. The base of the handle houses a precision CNC-machined M14×1.5 / G1/4 swivel connector that rotates freely under full hydraulic pressure, preventing high-pressure delivery hoses from coiling, kinking, and snagging during orchard maneuvers.







Technical Specifications





ITEM DETAILS
Product Name Gasoline Sprayer 60cm/53cm High-Pressure Long Lance Spray Gun
Product SKU / Type No. 0403614
Brand SeaSummer
Effective Lance Length 60 cm Standard Length (53 cm Compact Configuration Optional)
Barrel Material Heavy-Wall Seamless Stainless Steel Alloy Tube
Nozzle & Valve Core Material CNC-Machined Solid HPb59-1 Brass
Grip & Housing Material Chemical-Resistant, High-Impact Engineering Polymer (Safety Orange)
Inlet Port Specification Standard M14 × 1.5 / G1/4 Female/Male Swivel Thread
Rated Operating Pressure 1.5 – 4.0 MPa (15 – 40 Bar / 220 – 580 PSI)
Peak Proof Pressure 6.0 MPa (60 Bar / 870 PSI Hydrostatic Limit)
Spray Stream Distance 5 – 10 Meters (Straight Jet Mode)
Mist Dispersion Angle 30° – 80° Stepless Adjustable Conical Fan / Cone
Chemical Compatibility Emulsifiable Concentrates, Wettable Powders, Herbicides, Foliar Feeds & Fungicides
Compatible Machines 2-Stroke & 4-Stroke Backpack Power Sprayers (767, 768, TU26, GX35), Orchard Power Rigs
Delivery Time 30 Days
Packaging Cardboard packaging



Products Application





product-1024-1024

Bench Dimensional Verification & Nozzle Concentricity Inspection

Every batch of 0403614 spray guns undergoes comprehensive physical inspection. We verify stainless steel barrel straightness, effective 60cm/53cm overall length, thread gauge accuracy on the M14×1.5 inlet swivel, and the rotational clearance of the brass atomizing nozzle tip to guarantee flawless field reliability.

.

product-1024-1024

Hose Attachment & Swivel Joint Assembly

Connecting directly to standard high-pressure woven agrochemical hoses via the rear M14×1.5 / G1/4 swivel port. The internal O-ring seal compresses against the hose fitting, allowing full 360-degree free rotation without weeping or thread binding under sustained 40 bar pressure.

product-1024-1024

Canopy Penetration & Wide-Angle Field Spraying

Engineered for intense agricultural pest control across citrus groves, tea plantations, vineyard trellises, and open vegetable fields. The powerful 5–10 meter jet easily reaches tall foliage, while switching to fine conical mist ensures uniform droplet deposition on both upper and lower leaf surfaces.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



About Us





Jiaxing Norsun Trading Co., Ltd.

As an established supplier of outdoor power equipment and pneumatic components, Jiaxing Norsun Trading Co., Ltd. delivers streamlined B2B sourcing for global distributors. Backed by 200+ audited manufacturers in China, we ensure factory-direct wholesale pricing, strict incoming and outgoing inspection, and steady volume supply.

One-Stop Sourcing Hub

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Direct Factory Network

200+ TRUSTED MANUFACTURING PARTNERS ACROSS CHINA

Production process


product-496-372
Injection MoldingPlastic & Rubber Parts
product-496-372
CNC Lathe TurningHigh-Precision OD/ID
product-496-372
CNC Machining CenterMulti-Axis Milling
-5
Precision TappingCalibrated Thread Pitch
product-496-372
Clean Assembly LineSemi-Automated Line
product-496-372
100% QC InspectionOptical & Pressure Test
product-496-372
Protective PackagingCardboard & Rust-Proof
-6
Warehouse & LogisticsFast Dispatch & Storage

Quality Assurance & Traceability: Every pneumatic component is manufactured under strict ISO quality management standards-from raw material inspection and CNC machining to thread gauge verification and 100% pressure leak testing



Expo experience





product-1500-2000



Customer Reviews





product-1500-2000





FAQ





Q: How does the front brass nozzle adjust between jet stream and atomized fog?

A:Adjustment is completely tool-free. Rotating the front knurled brass nozzle collar shifts the internal orifice spacing relative to the swirl core. Screwing the collar inward focuses fluid into a high-momentum solid stream reaching 5–10 meters; rotating outward introduces high-velocity peripheral shear that breaks the fluid into an expansive 30°–80° fine mist plume.

Q:Does this spray gun fit standard backpack power sprayers like the 767, 768, and TU26?

A:Yes. The inlet connection uses the universal M14×1.5 metric (and G1/4 compatible) thread standard utilized by over 90% of commercial backpack gasoline sprayers, motorized wheelbarrow sprayers, and stationary agricultural plunger pump units worldwide.

Q: How does the integrated swivel joint handle high-pressure hose twisting?

A:Unlike rigid one-piece spray handles that cause hoses to loop and kink during directional changes, our brass inlet connector features an internal sealed rotary bearing race. It swivels smoothly under continuous 15–40 bar working pressure, protecting hose reinforcement braids and reducing wrist strain.

Q: What customization and bulk packaging options are available for distributors?

A:We supply export-ready master Cardboard packaging with individual protective sleeves for each lance assembly. Custom grip colors (OEM branding), custom barrel lengths (e.g., 53 cm, 60 cm, 90 cm), and customer-specific laser etching on the brass valve block are supported under our standard 30 Days Delivery Time.
