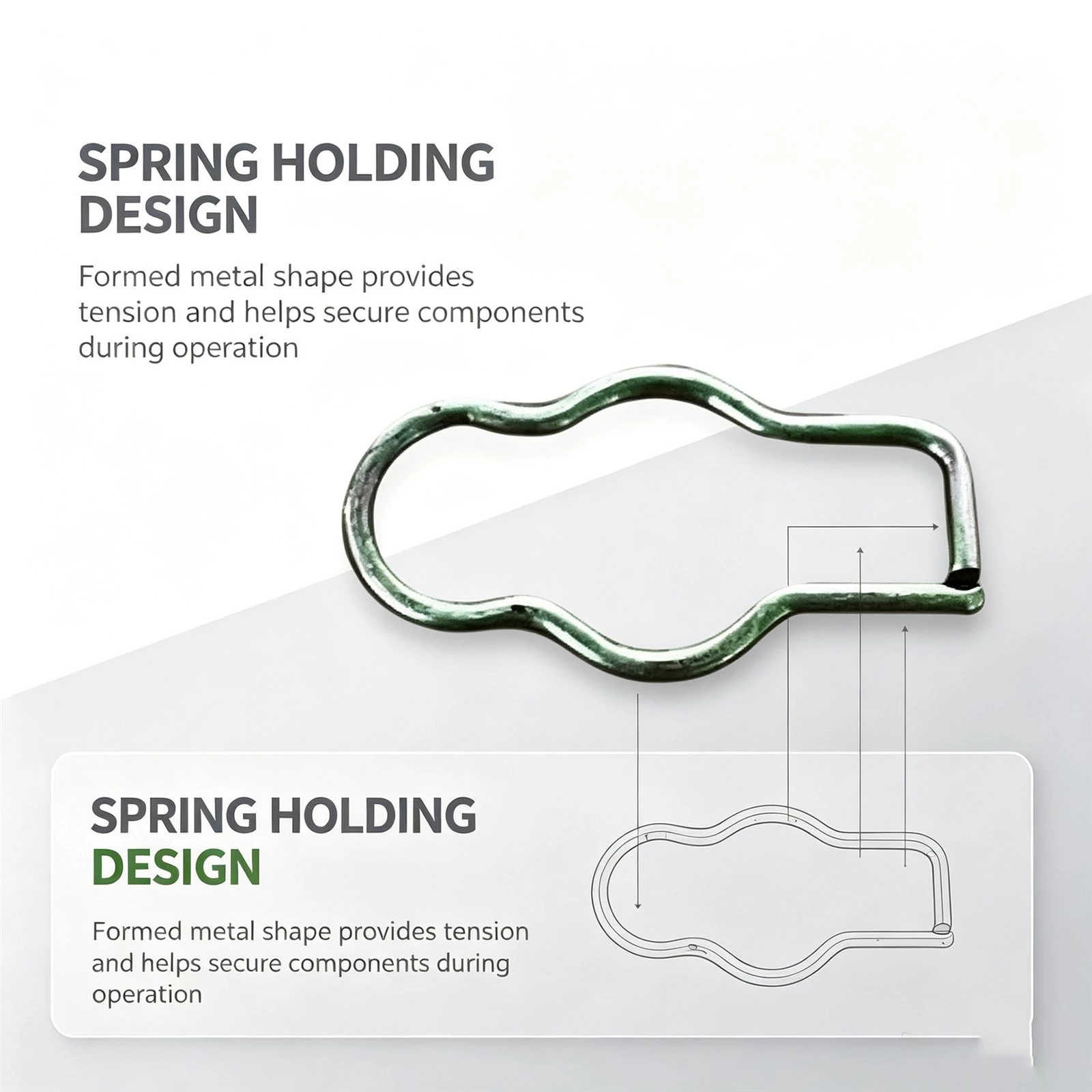

Shindaiwa B45 Brush Cutter Clip – Replacement Retaining Clip & Fastener
Essential Clip Components for Shindaiwa B45 Assembly & Maintenance
The Shindaiwa B45 brush cutter uses various types of clips and retaining fasteners for different assembly applications, including fuel system retention, component securing, and blade safety mechanisms. Multiple OEM clip variants are available, each designed for a specific function within the brushcutter assembly. Understanding which clip is required for your particular repair is essential for proper equipment maintenance and safe operation.
Technical Profiles & Materials
Fuel System Retention Clip (V490000500) – This OEM clip is a silver steel component that secures the fuel line to the fuel filter . Rated as easy to install, this clip should be replaced if there is a leak around the hose where the clip secures the connection, or if the fuel line detaches . It fits B45 brush cutters and is manufactured by Echo for Shindaiwa equipment .
Blade Safety Clip (Holder "A") – The B45 features a specialized safety clip (also known as Holder "A") that is essential for blade assembly . This safety clip must be centered over the gearcase shaft and the blade, and both holders must be flat against the blade surface . This clip is a critical safety component – never operate the brush cutter without the safety clip installed and both holders tightly secured .
Metal Hardware Clip (A238000060) – This authentic manufacturer-sourced component is designed for Shindaiwa handheld lawn and garden equipment . Made of durable metal and sold individually, this clip is an identical replacement for a missing or faulty hardware component . Compatible with B45, B45INTL, and B45LA models .
Throttle Trigger Retaining Clip – The throttle trigger uses a retaining clip that must be pried partially out to allow the throttle trigger to swing out for cable replacement . After inserting the cable end into the trigger recess, the retaining clip is pushed back into place to secure the assembly .
Retainer-Breather (A359000010) – This metal retainer is used to hold the configuration of the breather assembly, ensuring that all components stay in place . Compatible with B45 brush cutters and sold individually .
Technical Specifications
| # | Component | OEM Part Number | Specification / Application |
|---|---|---|---|
| 1 | Fuel Line Clip | V490000500 | Silver steel, secures fuel line to fuel filter, easy installation |
| 2 | Safety Clip (Holder "A") | Refer to parts diagram | Critical blade mounting safety component |
| 3 | Hardware Clip | A238000060 | Durable metal, for handheld lawn and garden equipment |
| 4 | Retainer-Breather | A359000010 | Metal, holds breather assembly components |
| 5 | Throttle Retaining Clip | Refer to assembly diagram | Secures throttle trigger assembly |
| 6 | Snap Ring | 9242432000 / 20000-31140 | Metal, secures components on shafts |
| 7 | Circlip | E900706-00012 | Genuine Shindaiwa, fits B450 and compatible models |
Products Application
Fuel System Repair
The V490000500 clip is a direct replacement when the fuel line becomes detached from the fuel filter or when fuel leakage is detected around the hose connection . This clip secures the fuel line to the fuel filter, ensuring proper fuel flow to the carburetor on B45 brush cutters.
Blade Assembly & Safety
The safety clip (Holder "A") is a critical component for blade mounting . The safety clip must be slid off-center on the gearcase shaft, the blade fitted over it, and the clip then centered to lock the blade in place . Holder "B" is then installed with its recess surrounding the safety clip . Never operate the brushcutter without the safety clip properly installed .
Workshop & Preventative Maintenance
For repair centres servicing Shindaiwa B45 brush cutters, various clips and retaining fasteners are standard replacement components. Genuine OEM clips guarantee correct fitment and reliable operation. Refer to the appropriate parts diagram for your model to confirm the exact location and application of each clip .
Quality and Craftsmanship Details
Products Package
About Us
As a premier garden machinery parts supplier, Jiaxing Norsun Trading Co., Ltd. bridges global distributors with over 100 vetted China manufacturers. We streamline your B2B supply chain through strict quality control, flexible production, and factory-direct wholesale pricing. Partner with us for reliable, high-volume sourcing of precision-engineered outdoor power equipment components.
Trusted Partnership Power
YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS
Verified Factory Excellence
BACKED BY 200+ TRUSTED FACTORY PARTNERS
Production process
Quality control
Expo experience
Customer Reviews
FAQ
Q: How do I confirm which clip fits my Shindaiwa B45?
A:Check your model number (B45, B45INTL, or B45LA) and refer to the parts diagram for your specific model . Clips such as V490000500, A238000060, and A359000010 are confirmed compatible with B45 models .
Q: What are the symptoms that indicate the fuel line clip needs replacing?
A: Common symptoms include fuel leakage around the hose connection where the clip secures it, or the fuel line detaching from the filter . Replacement is recommended if either symptom is observed.
Q: Why is the blade safety clip important?
A: The safety clip is a critical component that secures the blade to the gearcase shaft . Operating the brushcutter without the safety clip properly installed and both holders tightly secured against the blade surface is dangerous and strictly prohibited .
