TS420 Crankshaft

TS420 Crankshaft

SKU: 0120032
OEM Reference: STIHL: 4238 030 0400 (42380300400)
Fitment: STIHL TS410, TS420 Cutquik Power Cutters (66.7cc Concrete Saws; also compatible with TS400)
Engineering Specs: Drop-Forged 20CrMnTi/42CrMo Alloy Steel, Induction-Hardened Journals (HRC 58–62), Pre-Fitted Caged Needle Bearing
Commercial Terms: Brand: SeaSummer | Delivery Time: 30 Days | Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of ts420 crankshaft in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

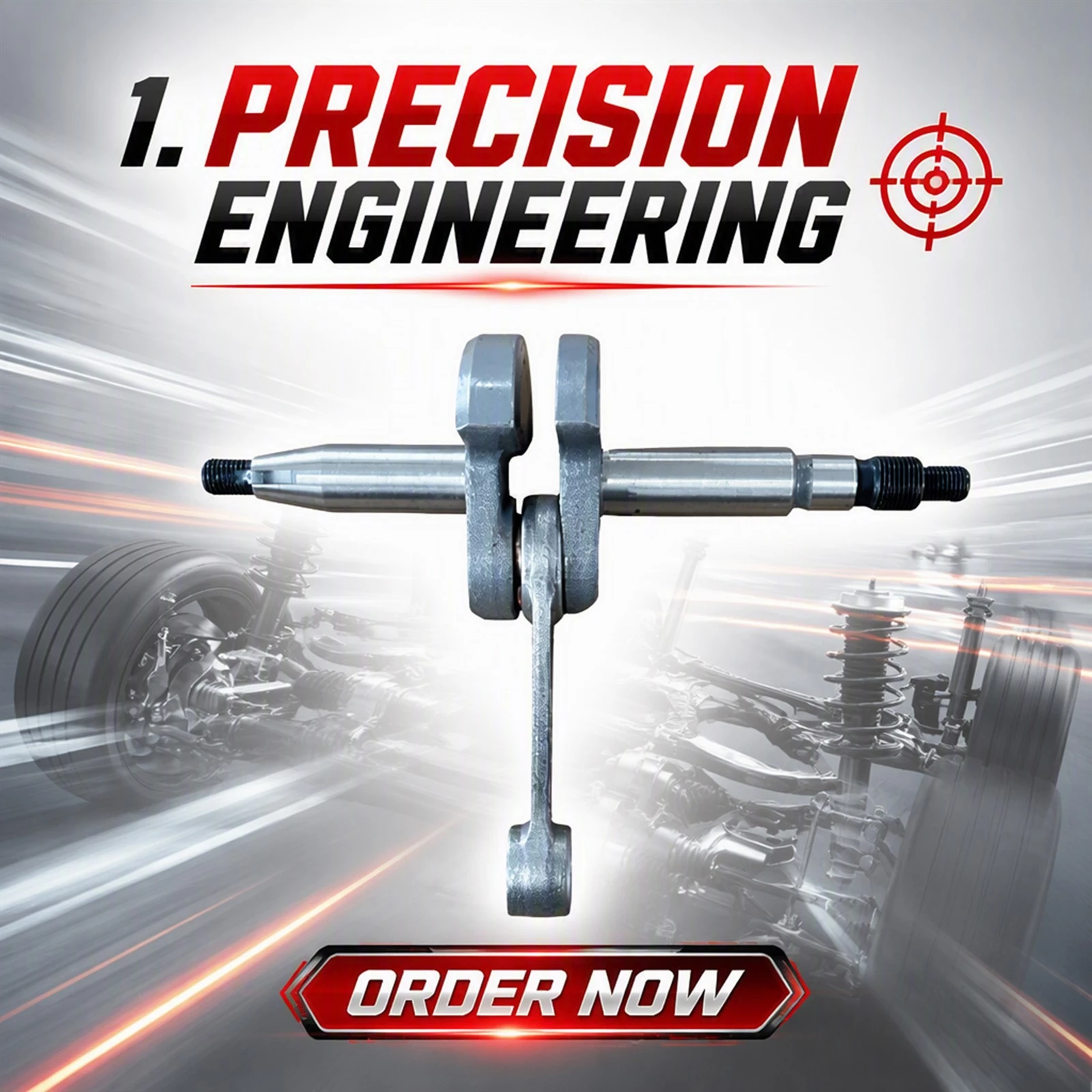

STIHL TS410 / TS420 Concrete Cut-Off Saw Crankshaft Assembly

Heavy-Duty Forged Alloy Steel Crankshaft & Connecting Rod Assembly (OEM 4238 030 0400)



product-1024-1024

Product Introduction

Concrete and masonry cutting exposes power cutter engines to abrasive diamond blade wheel pinch, intense structural vibration, and concrete slurry contamination. On STIHL TS410 and TS420 66.7cc cut-off saws, severe cutting shocks frequently cause crankshaft taper scoring, connecting rod big-end needle bearing spalling, sheared flywheel woodruff keys, or stripped clutch drive threads.

This drop-forged alloy steel crankshaft assembly provides a complete bottom-end overhaul solution engineered to withstand heavy masonry and steel cutting. Forged from high-tensile 20CrMnTi/42CrMo structural steel with continuous unbroken grain flow, it features induction-hardened main bearing journals ground to micron-level runout tolerances. Balanced counterwebs reduce high-frequency harmonic vibration across the 9,000+ RPM cutting range, while an anti-corrosion chemical blackening/phosphate finish protects non-journal surfaces against harsh alkaline concrete dust and wet cutting slurry.







Technical Specifications





Parameter Specification
Product Name Cut-Off Saw Crankshaft & Connecting Rod Assembly
SKU 0120032
Brand SeaSummer
STIHL OEM Reference 4238 030 0400
Compatible Cut-Off Saws STIHL TS410, TS420 (66.7cc / 3.2 kW Platform; also fits TS400)
Crankshaft Body Material Drop-Forged 20CrMnTi / 42CrMo High-Tensile Alloy Structural Steel
Journal Heat Treatment High-Frequency Induction Hardened & Carburized (HRC 58 ~ 62)
Bearing Journals Finish Micro-Polished Cylindrical Finish (Sub-Micron Runout & Roundness)
Dynamic Balancing Profile Precision Balanced Counterweights for Low-Vibration 9,000+ RPM Operation
Surface Protection Industrial Corrosion-Resistant Phosphate / Blackening Coating
Assembly Net Weight Approx. 0.54 kg ~ 1.0 kg
Delivery Time 30 Days
Packaging Cardboard packaging



Products Application





product-816-816

Bench Inspection Before Assembly

Check the flywheel taper, clutch drive threads, and keyway slots for clean machining and burr-free surfaces. Verify that the connecting rod big-end bearing rotates smoothly without radial play or binding.

product-816-816

Installation & Bottom-End Rebuild Guidelines

Completely clean the crankcase halves, removing metal fragments and abrasive concrete slurry residue.

Mandatory Replacement: Always install brand-new main crankcase ball bearings and skeleton oil seals alongside a new crankshaft; never press old, fatigued bearings onto new precision journals.

Heat the bearing inner races or crankcase pockets evenly to drop the crankshaft into place without hammering directly on the shaft ends.

Align the crankcase halves and torque case bolts diagonally in a cross pattern.

Perform a crankcase pressure and vacuum leak-down test (-0.5 bar / +0.5 bar) before mounting the cylinder and ignition.

product-816-816

Fuel & Lubrication Requirements

Use only fresh gasoline mixed at a strict 50:1 ratio with high-grade synthetic 2-stroke engine oil. Avoid cheap or degraded fuel mixes (and fuels with >10% ethanol content) to maintain an unbroken hydrodynamic oil film across the connecting rod big-end needle bearing under high-temperature abrasive cutting loads.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



About Us





Jiaxing Norsun Trading Co., Ltd.

As an established supplier of outdoor power equipment and pneumatic components, Jiaxing Norsun Trading Co., Ltd. delivers streamlined B2B sourcing for global distributors. Backed by 200+ audited manufacturers in China, we ensure factory-direct wholesale pricing, strict incoming and outgoing inspection, and steady volume supply.

One-Stop Sourcing Hub

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Direct Factory Network

200+ TRUSTED MANUFACTURING PARTNERS ACROSS CHINA

Production process


product-496-372
Injection MoldingPlastic & Rubber Parts
product-496-372
CNC Lathe TurningHigh-Precision OD/ID
product-496-372
CNC Machining CenterMulti-Axis Milling
-5
Precision TappingCalibrated Thread Pitch
product-496-372
Clean Assembly LineSemi-Automated Line
product-496-372
100% QC InspectionOptical & Pressure Test
product-496-372
Protective PackagingCardboard & Rust-Proof
-6
Warehouse & LogisticsFast Dispatch & Storage

Quality Assurance & Traceability: Every pneumatic component is manufactured under strict ISO quality management standards-from raw material inspection and CNC machining to thread gauge verification and 100% pressure leak testing



Expo experience





product-1500-2000



Customer Reviews





product-1500-2000





Practical Questions & Ordering





Q:What are the primary symptoms indicating a damaged TS420 crankshaft?

A:Severe vibration transferred to the operator handle, a harsh metallic knocking sound at idle and under load, stripped flywheel or clutch drive threads, or visible radial play when wiggling the crankshaft ends.

Q:Can this crankshaft be installed directly into older TS400 saws?

A:Yes. STIHL TS410, TS420, and earlier TS400 power cutters share the same bottom-end crankcase architecture, bearing journal diameters, and stroke geometry.

Q: Why is dynamic balancing especially critical for cut-off saws?

A:Operating at 9,000+ RPM with a 14-inch abrasive wheel creates high gyroscopic and rotational stresses. Balanced counterweights prevent excessive harmonic shaking, protect the operator against hand fatigue, and prevent premature crankcase fatigue cracking.



Q: What is the standard packaging and lead time?

A:Each crankshaft is individually preserved in anti-rust oil wrap inside a reinforced protective carton within master Cardboard packaging. Standard production delivery time is 30 Days.
