00200665 Lawn Mower Tractor PTO Clutch Ariens

00200665 Lawn Mower Tractor PTO Clutch Ariens

SKU:0394-Ar-00200665
Application:lawn tractor
Material: steel
Operating Temp:Up to 370°F
Packaging:Cardboard packaging
Delivery Time:30 Days
Send Inquiry
Add To Inquiry
Description
Brand Name SeaSummer SKU 0394-Ar-00200665
ID 1" Pulley 6.000"
Rotation CCW Belt 1/2" or 5/8" Belt
Voltage 1000V Maximum Engine RPM 3,600 RPM
Torque 110 ft. lbs. Temperature Up to 370°F (188°C)
Net Weight 5kg Carton Dimensions 68 x 46 x 26 cm
MOQ 100pcs Customized Services OEM
Delivery Time 30 days, volume-dependent Packaging Cardboard packaging

Products Description

product-1-1

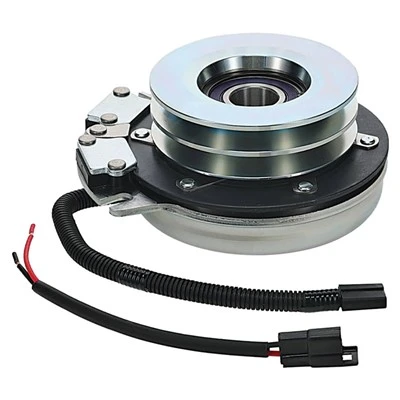

PTO Clutch Ariens - 00200665

This electric PTO clutch is a direct aftermarket replacement for Ariens part number 00200665, engineered for the blade engagement systems of Ariens lawn and garden tractors where reliable deck control is expected every time the switch is thrown. A high-output electromagnetic coil drives a friction assembly matched to the original's engagement profile - clean pickup, steady holding, prompt release - keeping the machine's behavior familiar to any operator. The unit follows the 00200665 reference geometry: mounting bolt pattern, shaft interface and electrical connector all reproduce the factory layout, so the swap is a direct, bolt-for-bolt exchange requiring no modification or additional hardware. Build quality targets long service life: heat-tolerant materials guard the working components during sustained operation, sealed internals block the dust and moisture of everyday use, and the friction surface is selected to resist the gradual degradation that silently reduces cutting performance over time. Every batch is verified for coil resistance and engagement consistency before shipping, and working inventory is maintained to cover both single-unit repairs and scheduled dealer or fleet programs.



Vehicle Compatibility

Applications

Ariens Max Zoom Series
Ariens Professional Walk Commercial Series
Ariens Too Many To List
EverRide Fury ZT Series
EverRide Pistol Grip Series
EverRide Pro-Steer Series
EverRide Too Many To List
Gravely Pro Walk Gear Series
Gravely Pro Walk Hydro Series
Gravely Too Many To List
Great Dane Chariot Series
Great Dane Surfer Series
Great Dane Too Many To List
Husqvarna EZ4216 HO
Husqvarna EZ4217 KAA



Replacement Numbers

AYP 539112233
Craftsman 539112233
Husqvarna 539112233
Ogura GT1AHU02
Ogura GT1A-HU02
Snapper 885443
Snapper 885443YP
Xtreme X0394



Products Advantages

Why Choose Our Electric PTO Clutch over Generic Replacements?
The Industry Problem: Most aftermarket clutches burn out prematurely due to low-grade copper windings (Class B/F insulation) and unsealed bearings that trap turf debris.
product-700-700
Coil overheated and burned out
product-700-700
Bearings prone to seizing or bursting
product-700-700
Severe vibration & damages the engine
product-700-700
Wire harness breakage poor waterproofing
Our Solution:
product-555-320
01

A Simple Repair Shouldn't Carry a Premium Price

Replacing a clutch on an Ariens tractor is routine maintenance - until the parts bill makes it feel like a major event. Factory-channel pricing on the 00200665 adds cost without adding performance. Our replacement matches the original's engagement and durability behavior at an aftermarket price, keeping routine repairs routine, and keeping more of the customer's money out of the parts invoice.

02

The Job Is Quick When the Part Is Right

A replacement that bolts up without debate turns a twenty-minute job into a twenty-minute job. This unit is manufactured to the Ariens 00200665 dimensions and checked across its critical interfaces, so installation runs exactly per the manual - remove, replace, reconnect, verify. The first attempt is the last attempt, and the tractor is back in service before the customer finishes their coffee.

product-555-320
product-555-320
03

Smooth Starts Protect Everything Downstream

Every hard engagement sends a shock through the deck belt, pulleys and spindle bearings - wear that eventually surfaces as a bigger repair than the clutch itself. Our coil and friction assembly engage smoothly and hold firmly, sparing the driveline from jolts and keeping blade speed consistent, so the small part protects the whole system.

04

Availability Should Match the Owner's Schedule

A tractor parked for parts is a tractor failing at its only job - especially when the lawn doesn't wait. We hold the 00200665 in stock through the season with steady production behind it, so urgent single orders and planned multi-unit purchases both move on a dependable timeline, with every batch functionally tested before dispatch.

product-555-320


Quality and Craftsmanship Details

product-1920-1920product-1920-1920





Products Package



seasummer packing



About Us



Jiaxing Norsun Trading Co., Ltd.

As a premier garden machinery parts supplier, Jiaxing Norsun Trading Co., Ltd. bridges global distributors with over 100 vetted China manufacturers. We streamline your B2B supply chain through strict quality control, flexible production, and factory-direct wholesale pricing. Partner with us for reliable, high-volume sourcing of precision-engineered outdoor power equipment components.

Trusted Partnership Power

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Verified Factory Excellence

BACKED BY 200+ TRUSTED FACTORY PARTNERS

Production process

-1
Assembling
-2
CNC Machining Center
-8
CNC Lathe
-5
Tapping Machine
-3
Tapping Machine
-7
Injection Molding Machine
-4
Inspecting
-6
Warehousing



Quality control

-1
-3
-4
-2

Expo experience



seasummer expo experience



Customer Reviews



seasummer reviews



FAQ

Q: How do I select the correct electric PTO clutch for my specific mower model?

A:To guarantee a 100% exact fit, you need to verify four critical mechanical dimensions:1. Shaft Bore Size: Common sizes are 1" (25.4 mm) or 1-1/8" (28.6 mm).2. Pulley Outer Diameter (OD) & Belt Width: Matches your deck's V-belt size (e.g., 1/2" or 5/8").3. Rotation Direction: Clockwise (CW) or Counter-Clockwise (CCW) when viewing from the pulley end.4. OEM Cross-Reference: Compare with original numbers (Warner, Ogura, John Deere, etc.).If you provide us with your engine model or original part number, our engineering team will cross-check our database and provide a 3D fitment drawing for confirmation.

Q: What measures are taken to prevent the coil from burning out during heavy-duty operation?

A: Our electric PTO clutches are built with Class H insulated copper wire, rated for temperatures up to 180°C (356°F). Combined with dual-sealed C3 high-speed bearings and dynamic balance calibration, our design reduces friction-induced heat, significantly lowering the risk of thermal coil failure under prolonged high-load conditions.

Q: What is your quality inspection protocol before shipment?

A:Every single clutch (100% full inspection, not random sampling) passes through our 4-step automated testing rig before packaging:

1. Coil Resistance & Amperage Test: Verifies electrical integrity.2. Static Torque Capacity Test: Ensures proper torque engagement under load.3. Air Gap Precision Check: Factory preset to optimal clearance (0.012" - 0.020") for immediate response.4. Dynamic Balance & Noise Level Test: Ensures vibration-free operation.

Q: Do you offer custom OEM/ODM development for specialized lawn equipment manufacturers?

A: Yes. We regularly partner with OEM machine builders and private-label brand owners. Our customization capabilities include:Custom Wiring Harnesses: Wire gauge, sleeve protection (corrugated/braided), and waterproof connector types (Deutsch, Molex, Amphenol).Custom Pulley Configurations: Single/double groove, specific ODs, and anti-corrosion plating.Branding & Packaging: Laser-etched logos/part numbers on the steel body, custom color box packaging, and barcoded master cartons.
