Lawn Mower Tractor PTO Clutch Scotts S2554 Garden Tractor

Lawn Mower Tractor PTO Clutch Scotts S2554 Garden Tractor

SKU: 0406-Sc-0009 Application:lawn tractor
Material: steel
Operating Temp:Up to 370°F
Packaging:Cardboard packaging
Delivery Time:30 Days
Send Inquiry
Add To Inquiry
Description
Brand Name SeaSummer SKU 0406-Sc-0009
ID 1.125" Pulley 5.31"
Rotation CCW Belt A/B Belt
Bolt Torque 110 ft. lbs. Maximum Engine RPM 3,600 RPM
Voltage Insulation 1000V Temperature Up to 370°F (188°C)
Net Weight 5kg Carton Dimensions 68 x 46 x 26 cm
MOQ 100pcs Customized Services OEM
Delivery Time 30 days, volume-dependent Packaging Cardboard packaging

Products Description

product-160-160

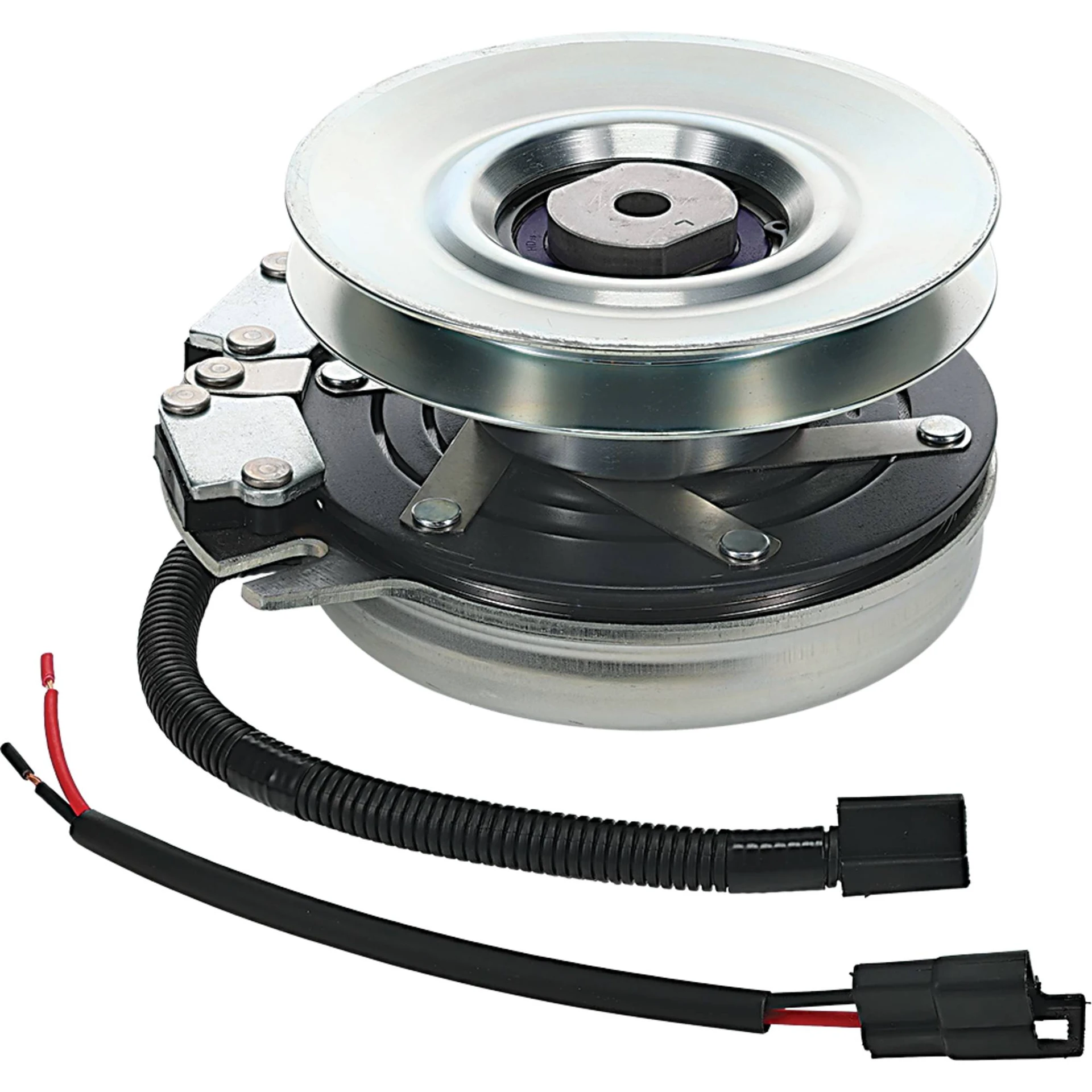

Lawn Mower Tractor PTO Clutch Scotts S2554 Garden Tractor



This electromagnetic PTO clutch serves as a bolt-on aftermarket replacement engineered exclusively for Scotts S2554 and compatible John Deere garden tractors. These lawn and garden tractors are widely adopted for household yard care, small acre hobby farm upkeep and light landscape renovation tasks. In daily field use, frequent blade engagement cycles build up residual heat confined beneath the compact mower deck, alongside continuous bombardment from grass clippings, soil dust and outdoor moisture. Many low-cost substitute clutches fail quickly under this combined heat and particle exposure. Operators will encounter visible performance deterioration: delayed blade pickup, reduced torque capacity under dense grass cutting, constant bearing hum, and unexpected blade power disconnection during active mowing.

This replacement clutch features a 1.125-inch shaft bore, counter-clockwise rotation, and a 5.31-inch pulley compatible with A/B section V-belts. It delivers steady 110 ft-lbs holding torque at a maximum operating speed of 3400 RPM. All mounting hole positions, flange profiles and electrical connector geometry align precisely with OEM original specifications. Field repair technicians can complete the whole replacement using standard hand tools, with no drilling, material filing or custom-made auxiliary spacers required during on-site installation. Multi-lip sealing barriers block lawn debris and humid air from accessing internal bearings and friction components. Our upgraded coil structure improves heat dissipation to reduce thermal fatigue triggered by frequent PTO activation cycles for residential light-load mowing jobs.

Each finished clutch assembly goes through air-gap preset calibration, coil high-voltage dielectric withstand test and static torque retention inspection before packaging. This aftermarket component supports single-unit tractor repair jobs, local service shop orders and bulk inventory replenishment for turf parts distributors supplying Scotts and John Deere garden tractor users across North America.





Vehicle Compatibility
Applications
John Deere 240 - 245 Lawn Tractors
John Deere 260 - 265 Lawn Tractors
John Deere 325 - 335 - 345 Lawn Tractors
John Deere 44", 48", and 54" Mid Mount Mower Decks
John Deere GT242 - GT262 - GT275 Garden Tractors
John Deere S2554 Garden Tractors
John Deere Sabre Garden Tractors
Scotts S2554 Garden Tractor



Replacement Numbers
John Deere AM103035
John Deere AM108601
John Deere AM115093
John Deere AM119536
Scotts AM119536



Products Advantages

Why Choose Our Electric PTO Clutch over Generic Replacements?
The Industry Problem: Most aftermarket clutches burn out prematurely due to low-grade copper windings (Class B/F insulation) and unsealed bearings that trap turf debris.
product-700-700
Coil overheated and burned out
product-700-700
Bearings prone to seizing or bursting
product-700-700
Severe vibration & damages the engine
product-700-700
Wire harness breakage poor waterproofing
Our Solution:
product-555-320
01

Purpose-Built For Residential-Light-Duty Garden Tractor Mowing Conditions

The Scotts S2554 and compatible John Deere garden tractors are commonly used for regular home lawn maintenance and small property mowing work. Narrow deck spaces trap heat continuously during operation, while grass debris and fine soil particles constantly hit the clutch housing. Our strengthened friction pack maintains reliable clamping force through thousands of engage/disengage cycles. Multi-layer sealing structures effectively block dirt and moisture from entering internal components. It provides an economical repair option for service shops, compared with expensive original OEM assemblies. All internal mechanical components maintain stable performance under frequent temperature changes and ongoing exposure to lawn contaminants.

02

Single-SKU Multi-OEM-Number Cross-Reference With Model-Check Reminder

This aftermarket single SKU matches several OEM part numbers for Scotts and John Deere garden tractor platforms. Its core physical specifications: 1.125-inch shaft bore, 5.31-inch pulley diameter and counter-clockwise rotation fully match factory blueprint dimensions. Field replacement can be completed without custom cutting metal or installing extra manual shims. For warehouse inventory managers, stocking this single part can cover repair needs of multiple garden tractor models, reducing total SKU counts and improving inventory turnover for local repair shops. End users must verify their original part stamp and complete tractor model to avoid ordering mismatched products.

product-555-320
product-555-320
03

Stable 110-Ft-Lbs Torque Delivery Under Variable Light-Duty Mowing Resistance

Household lawn mowing creates constantly changing cutting loads: tall overgrown grass creates sudden torque spikes, and routine weekly yard care triggers repeated PTO switch cycles all mowing season. Our thermally optimized coil and long-lasting friction material dissipate thermal stress accumulated during frequent light-load operation. It maintains steady blade rotation speed, cushions mechanical shock every time the clutch engages, and protects deck spindles, A/B V-belts and engine crankshaft to slow component fatigue. Consistent cutting performance can be maintained during multi-hour weekend lawn mowing tasks.

04

Season-Oriented Production & Stock Planning For Local Turf-Parts Retailers

Turf part wholesalers and neighborhood repair shops face obvious order surges in North America's spring and summer mowing seasons. We arrange batch production cycles and reserve safety stock for this garden tractor clutch SKU. Every finished unit passes comprehensive functional testing before shipment. Our supply chain supports large seasonal bulk orders and medium-sized urgent restock requests, helping merchants prevent costly out-of-stock situations during peak mowing months.

product-555-320


Quality and Craftsmanship Details

product-1920-1920product-1920-1920





Products Package



seasummer packing



About Us



Jiaxing Norsun Trading Co., Ltd.

As a trusted supplier specializing in spare parts for outdoor garden machinery, Jiaxing Norsun Trading Co., Ltd. connects overseas distributors and repair retailers with a curated network of qualified Chinese production factories.

We help simplify your B2B procurement workflow by implementing rigorous quality inspection procedures, offering adaptable manufacturing schedules and competitive factory wholesale rates. Collaborate with us to source accurately machined outdoor power equipment replacement parts with stable quality and scalable order capacity.

Trusted Partnership Power

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Verified Factory Excellence

BACKED BY 200+ TRUSTED FACTORY PARTNERS

Production process

-1
Parts Assembly Line
-2
CNC Milling Workshop
-8
CNC Turning Station
-5
hread Machining
-3
Thread Fabrication
-7
Plastic Injection Molding
-4
Quality Inspection
-6
Finished Inventory Storage



Quality control

-1
-3
-4
-2

Expo experience



seasummer expo experience



Customer Reviews



seasummer reviews



FAQ

Q:What documents and part data do I need to verify if this clutch fits my Scotts garden tractor?

A:This light-duty aftermarket garden tractor replacement cross-references John Deere AM103035, AM108601, AM115093, AM119536 and Scotts AM119536. Its core technical parameters include a 1.125-inch shaft bore, counter-clockwise rotation, and a 5.31-inch pulley matching A/B section V-belts, with rated holding torque of 110 ft-lbs. It is compatible with Scotts S2554 and multiple John Deere garden tractor series. Always validate your original clutch part marking and complete tractor model before placing orders. Share your tractor information and part numbers with our technical team for formal fit validation.

Q: What working hazards can this optimized coil clutch protect against for supported Scotts garden tractors?

A:The matched Scotts S2554 and John Deere garden tractors handle residential yards and small-lot lawn maintenance. Their compact decks trap sustained heat, while lawn dust and grass scraps continuously strike the clutch housing in daily work. Fitted with heavy-duty pigtail wiring and temperature-optimized coil design, its maximum heat tolerance reaches up to 365°F (185°C). It is built to withstand repeated cyclic heat accumulation during long mowing sessions on residential properties.

Q: What key dimensional data should I cross-check besides OEM part number to confirm fitment?

A:To avoid mismatched orders, apart from verifying OEM numbers AM103035, AM108601, AM115093 and AM119536, you also need to confirm the 1.125 inch shaft bore, counter-clockwise rotation direction and 5.31 inch pulley size. This clutch is designed for A/B section V-belts and rated at 110 ft-lbs holding torque. Double-check your tractor model Scotts S2554 or compatible John Deere garden tractors before purchase. Send your machine's spec details to our technical team if you are unsure.

Q:What damage factors does this clutch's sealing structure protect against during lawn mowing?

A: Garden tractor decks gather grass clippings, fine soil particles and morning dew when working on residential lawns. Our multi-lip sealing structure blocks fine debris and humid air from entering the bearing and friction assembly. It cuts down the chance of internal abrasion and coil dampness, even after long hours of yard cutting in damp or dusty working environments. The clutch can withstand peak temperature up to 365°F (185°C).
