Product Parameters
| Specification Item | Description |
|---|---|
| Product Name | 8-Head Sprayer Nozzle Assembly |
| Number of Nozzles | 8 pieces |
| Nozzle Type | Fan-shaped / Cone-shaped (per configuration) |
| Spray Angle (per nozzle) | 80° / 110° / 120° |
| Nozzle Material | Brass / Stainless Steel / Ceramic |
| Body Material | Aluminum / Nylon / Polypropylene |
| Nozzle Spacing | 25 cm / 30 cm / 40 cm / 50 cm (adjustable) |
| Total Spray Width | 2.0 m – 4.0 m (depending on spacing) |
| Inlet Connection | 1/2" / 3/4" / 1" Female Thread |
| Orifice Size Range | 0.3 mm – 1.5 mm (per nozzle) |
| Maximum Working Pressure | 150 PSI – 300 PSI (10 – 20 Bar) |
| Application | Boom sprayers / Field crop spraying / Vineyard / Orchard |
Product Description
1. High-Capacity 8-Nozzle Coverage
Eight precision nozzles mounted on a rigid manifold provide uniform chemical distribution across 2–4 meter swaths, significantly increasing spraying efficiency for large fields.
2. Individual Nozzle Shut-Off
Each nozzle can be independently turned on or off, allowing operators to adjust spray width for irregular field shapes, headlands, or obstacle avoidance.
3. Quick-Nozzle Replacement System
Tool-free nozzle cap design allows rapid replacement of worn or clogged nozzles in the field, minimizing downtime during critical spraying windows.

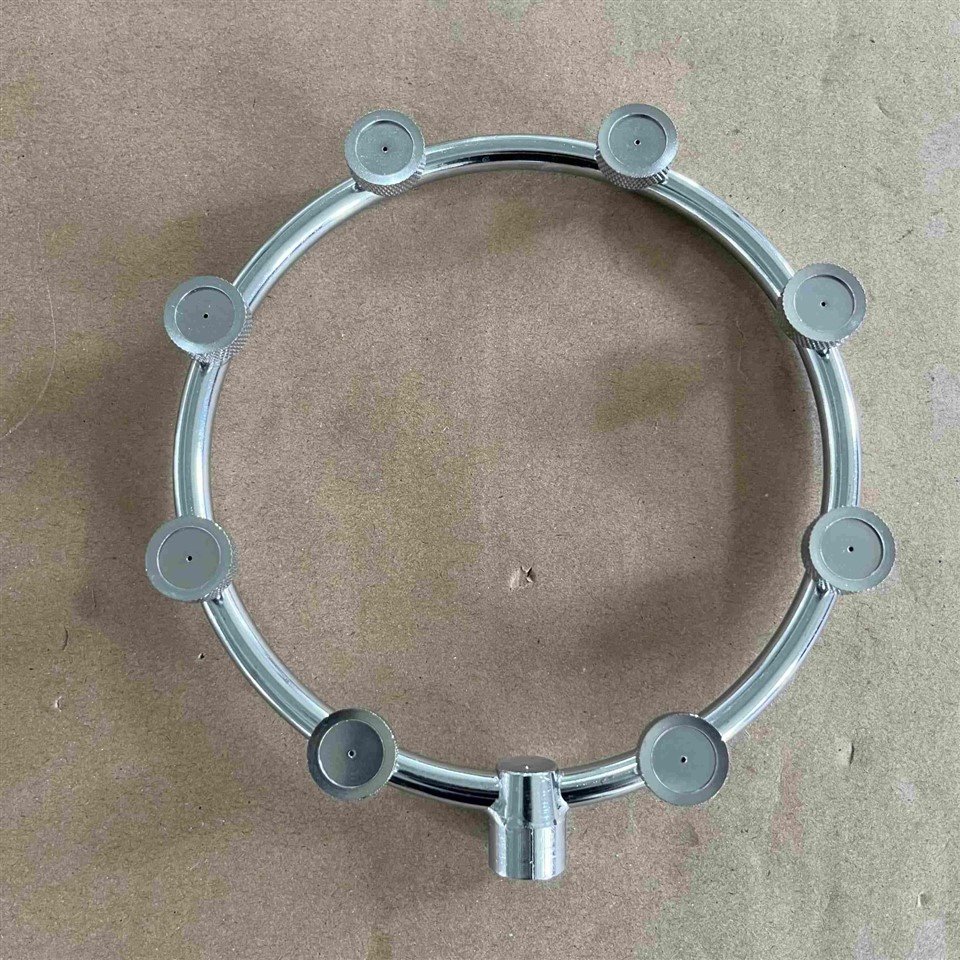

PRODUCT PICTURES
Products Package
About Us
Production
Quality control
customer Reviews
FAQ
Q1: What is the ideal nozzle spacing for my crop?
A: Standard spacing is 50cm for boom sprayers. For complete overlap, spacing should equal the spray width at target height. Follow chemical label recommendations for droplet coverage.
Q2: Can I use different nozzle types on the same 8-head assembly?
A: Yes. You can mix fan nozzles for broadcast spraying and cone nozzles for targeted application on the same boom. Ensure consistent flow rates across all active nozzles for uniform coverage.
Q3: How do I clean and maintain the 8-head nozzle assembly?
A: Remove all nozzles and soak in warm soapy water. Use a soft brush (never metal) to clean orifices. Rinse thoroughly. Replace damaged or worn nozzles. Flush the entire assembly with clean water after each chemical application.
