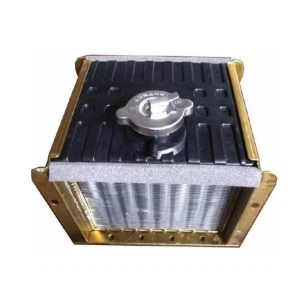

Diesel Engine Heat Sink 1100

Diesel Engine Heat Sink 1100

SKU / Type No.: 1609128
Engine Platform Fitment: 1100 Series (15HP–18HP Rating) Single-Cylinder 4-Stroke Heavy Industrial & Agricultural Diesel Engines
Equipment Applications: 8kW–12kW Diesel Generators, Walking Tractors, Heavy Power Tillers, High-Output Agricultural Water Pumps
Thermal Core & Metallurgy: High Thermal Conductivity Alloy Core with Densely Spaced Louvered Heat Exchanger Fins, Top Heavy Header Tank with Metal Lever Pressure Cap, Reinforced Multi-Hole Perimeter Steel Bracket
Commercial Terms: Brand: SeaSummer | Delivery Time: 30 Days | Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of diesel engine heat sink 1100 in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

1100 Series Heavy Industrial Diesel Engine Heat Sink Radiator

High-Convective Multi-Louvered Fin Heat Exchanger Core with Pressure Relief Cap & Rigid Steel Mounting Frame for 15HP–18HP Agricultural and Generator Powerplants



product-1024-1024

Thermal Management & Heavy Industrial Cooling Dynamics

Sustained heavy-duty operation on single-cylinder 1100 series (15HP–18HP) diesel engines-such as running large-capacity generator sets or pumping irrigation water non-stop for hours-concentrates intense thermal loads across the combustion chamber and cylinder head. When operating in dusty, high-ambient outdoor temperatures, compromised or clogged heat exchangers trigger rapid coolant boiling, oil viscosity breakdown, cylinder liner distortion, and unrecoverable piston scuffing.

Engineered to guarantee continuous thermal equilibrium under continuous full-load rating, this heavy-duty 1100 heat sink radiator assembly combines a high-density convective fin matrix with high-thermal-conductivity core passages. The densely louvered fins maximize ambient heat exchange without restricting engine cooling fan airflow. The reinforced top header tank incorporates a mechanical lever-locking metal pressure relief cap that regulates internal vapor expansion, elevating the boiling point of the coolant while preventing dry overheating. A surrounding zinc-plated steel mounting bracket with pre-punched flange holes isolates the core matrix from harsh single-cylinder engine vibration pulses.







Technical Specifications





Engineering Parameter Specified Value
Product Description Industrial Diesel Engine Heat Sink / Radiator Core Assembly
SKU / Type No. 1609128
Brand Identifier SeaSummer
Engine Series Compatibility 1100 Series Single-Cylinder 4-Stroke Diesel Engines (15HP to 18HP)
Machinery Applications 8kW–12kW Diesel Generator Sets, Farm Tillers, Walking Tractors, Pump Sets
Core Material Composition High Thermal Conductivity Metal / Alloy Fin Matrix with Anti-Oxidation Finish
Cooling Surface Architecture Dense Louvered Aerodynamic Fin Geometry for High-Volume Heat Dissipation
Header Tank & Pressure Port Heavy-Duty Header Tank Fitted with Lever-Locking Metal Pressure Relief Cap
Mounting Hardware Frame Heavy-Gauge Zinc-Plated Steel Perimeter Bracket with Standard Flange Pattern
Vibration Tolerance Engineered for High-Amplitude Reciprocating Harmonics on Single-Cylinder Diesels
Functional Role Fast Thermal Dissipation, Overheating Prevention, Crankcase Oil Protection
Delivery Time 30 Days
Packaging Cardboard packaging




Products Application





product-816-816

Core Geometry & Fin Alignment Check

Measure the outer casing dimensions, mounting bolt pitch, and core thickness with digital calipers. Visually inspect the aluminum fin rows to ensure no crushing or airflow blockages exist across the convective face. Check that the pressure cap spring and rubber seal ring are intact and seat firmly against the neck flange.

product-816-816

Mounting & Torque Procedure

Allow the engine to cool completely before servicing or installing the cooling assembly.

Clean all engine bracket mating faces, removing residual dirt, oil varnish, and rust scale.

Position the heat sink assembly onto the engine support pads, aligning the mounting holes squarely without forcing the perimeter bracket.

Thread in all perimeter mounting fasteners hand-tight, then tighten progressively in a diagonal sequence to avoid localized stress on the core.

Check that surrounding air cowlings and duct shrouds seal neatly against the top foam barrier without gaps.

Verify smooth operation of the top lever pressure cap before engine startup.

product-816-816

Maintenance & Field Service Thresholds

Cleaning Routine: Clear accumulated chaff, mud, and dust from the fin passages using low-pressure compressed air or a soft brush directed against the airflow path at regular maintenance intervals.

Replacement Standard: Replace the unit if fin matrix distortion exceeds 25% of the surface area, if structural cracks appear along the bracket welds, or if internal core passages develop persistent leaks.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



About Us





Jiaxing Norsun Trading Co., Ltd.

As an established supplier of outdoor power equipment and pneumatic components, Jiaxing Norsun Trading Co., Ltd. delivers streamlined B2B sourcing for global distributors. Backed by 200+ audited manufacturers in China, we ensure factory-direct wholesale pricing, strict incoming and outgoing inspection, and steady volume supply.

One-Stop Sourcing Hub

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Direct Factory Network

200+ TRUSTED MANUFACTURING PARTNERS ACROSS CHINA

Production process


product-496-372
Injection MoldingPlastic & Rubber Parts
product-496-372
CNC Lathe TurningHigh-Precision OD/ID
product-496-372
CNC Machining CenterMulti-Axis Milling
-5
Precision TappingCalibrated Thread Pitch
product-496-372
Clean Assembly LineSemi-Automated Line
product-496-372
100% QC InspectionOptical & Pressure Test
product-496-372
Protective PackagingCardboard & Rust-Proof
-6
Warehouse & LogisticsFast Dispatch & Storage

Quality Assurance & Traceability: Every pneumatic component is manufactured under strict ISO quality management standards-from raw material inspection and CNC machining to thread gauge verification and 100% pressure leak testing



Expo experience





product-1500-2000



Customer Reviews





product-1500-2000





Practical Questions & Ordering





Q:Is this heat sink radiator directly compatible with 1100 series diesel engines?

A: Yes. It is manufactured to match standard mounting bolt centers, header profiles, and airflow channels on 1100 series (rated 15HP–18HP) single-cylinder industrial diesel engines.

Q:Does this assembly include the top metal pressure cap?

A:Yes. The assembly comes pre-fitted with the complete heavy header tank and the matching lever-lock metal pressure relief cap.

Q:How does the perimeter steel frame prevent vibration damage?

A:Single-cylinder diesel powerplants generate strong reciprocating vibration. The heavy-duty perimeter steel bracket supports the fin matrix evenly, preventing fin joint fatigue, cracking, and weld separation during continuous operation.



Q:What are the wholesale export packing details and lead time?

A:Each heat sink radiator is protected with foam edge cushioning, packed in individual sturdy export boxes, and consolidated in master Cardboard packaging. The standard delivery time is 30 Days.
