Product Overview & Operating Details
Yamaha MZ175 / EF2600 Gasoline Generator Mechanical Governor & Throttle Return Spring Kit
High-Tensile Alloy Spring Steel Dual-Spring Set (1609151 & 1609152) for 3000/3600 RPM Constant Speed Control & Engine Hunting Elimination

Mechanical Role & Engine Speed Governance
On 2.0kW to 2.6kW utility generator sets powered by the Yamaha MZ175 (171cc) engine, electrical AC output frequency (50Hz / 60Hz) depends strictly on holding engine crankshaft speed at a constant 3000 RPM or 3600 RPM across varying electrical loads.
The mechanical governor system operates by balancing two opposing forces: the internal centrifugal flyweight pushing the governor arm closed, and the external governor main spring (SKU 1609151) pulling the carburetor throttle plate open. Over hundreds of service hours, continuous high-frequency engine vibration, thermal cycling, and spring steel fatigue cause standard governor springs to stretch and lose calibrated tension.
When governor spring tension relaxes, the engine suffers sluggish throttle response, frequency sag under heavy electrical loads, and severe hunting (erratic surging between idle and overspeed). Simultaneously, worn linkage holes develop mechanical free-play. This matched dual-spring kit pairs a high-precision governor main spring with a fine throttle rod anti-backlash spring (SKU 1609152) to eliminate linkage play, stabilize engine RPM, and maintain clean, steady electrical output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Description | Gasoline Generator Mechanical Governor & Throttle Linkage Spring Set |
| SKU / Part Numbers | 1609151 (Governor Main Spring) & 1609152 (Throttle Rod Spring) |
| Brand Identifier | SeaSummer |
| Compatible Engines | Yamaha MZ175 (171cc / 5.5HP), EF2600, EF2700, YP20G & Equivalent Platforms |
| Generator Output Fitment | 2.0 kW to 2.6 kW Single-Phase Gasoline Generator Sets & Centrifugal Pumps |
| Spring Wire Material | High-Tensile High-Yield Spring Steel Wire (Precision Cold-Coiled) |
| Heat Treatment | Stress-Relieved Tempering (Maintains Precise Preload Under High Temperature) |
| Fatigue Life Cycle | Tested >200,000 Deflection Cycles without Permanent Yield or Fracture |
| Corrosion Protection | Black Oxide / Zinc Passivation (Resists Fuel Vapors, Engine Heat & Outdoor Moisture) |
| Kit Configuration | 1× Main Governor Extension Spring + 1× Fine Throttle Rod Anti-Backlash Spring |
| Operational Function | Stabilizes 3000/3600 RPM Speed, Eliminates Throttle Hunting & Load Droop |
| Production Lead Time | 30 Days |
| Master Packaging | Cardboard packaging |
Products Application

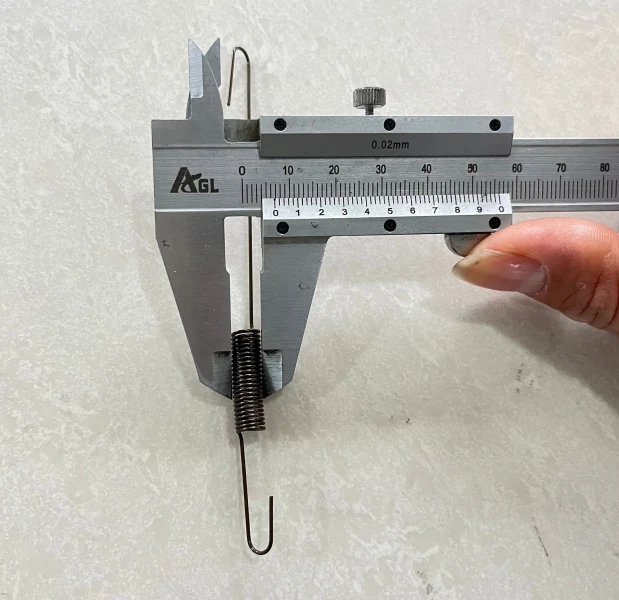

Pre-Assembly Dimensional Verification
Inspect the spring coils with digital vernier calipers to verify wire gauge consistency, active coil pitch, and straightness of the extended leg. Check the formed hook ends to confirm open hook geometry aligns with the factory holes on the Yamaha MZ175 governor cross-arm and carburetor throttle lever without twisting.

Assembly & Calibration Sequence
Shut down the generator engine, allow it to cool, and unclip the air cleaner box to access the governor control plate.
Note the original hole position of the old governor main spring on the governor arm bracket; unhook the worn springs.
Thread the fine throttle rod spring (1609152) over the solid steel throttle link wire, hooking its ends into the carburetor lever and governor arm to absorb linkage clearance.
Hook the main governor spring (1609151) into the designated factory hole on the governor arm and throttle control bracket. Do not alter or stretch the spring coils by hand during installation.
Connect a digital tachometer or frequency meter to the generator AC output receptacle.
Start the engine, loosen the throttle limit stop, and adjust the governor arm fine-tuning screw until no-load speed stabilizes at approximately 3120–3150 RPM (52–52.5 Hz), ensuring rated 3000 RPM (50.0 Hz) under full electrical load.

Service Best Practices
Correct Hole Positioning: Always install the spring hooks into the exact factory-designated hole locations. Moving the spring to an unauthorized hole alters governor leverage and creates uncontrollable RPM surge or overspeed.
Never Shorten Old Springs: Stretched or deformed springs have lost their linear spring rate. Discard fatigued springs and replace both the main spring and rod spring as a matched set.
Quality and Craftsmanship Details

Products Package

Practical Questions & Ordering
Q:Is this spring kit a direct replacement for original Yamaha MZ175 and EF2600 generators?
A: Yes. Wire diameter, coil count, extended leg length, and hook geometry match standard factory specifications on Yamaha MZ175, EF2600, EF2700, and YP20G gasoline engines.
Q:Why are two separate springs included in this kit?
A:The larger spring (1609151) provides calibrated counter-tension against the crankcase governor flyweights to set engine speed. The fine spring (1609152) fits over the rigid throttle linkage wire to eliminate mechanical play and prevent throttle flutter.
Q: What causes generator engine hunting (surging RPM)?
A:Engine hunting is commonly caused by a fatigued governor spring with reduced tension, linkage pivot wear, or an incorrectly positioned spring hook. Installing a fresh matched spring set restores crisp speed response.
Q: What are the wholesale export packing details and standard lead times?
A:Each dual-spring kit is packaged in protective labeling and boxed, then packed into master export Cardboard packaging. Standard production delivery time is 30 Days.
