TL43/CG430/40-5/TL52/CG520/44-5 Fuel Tank Support

TL43/CG430/40-5/TL52/CG520/44-5 Fuel Tank Support

SKU / Model: 0202117 | Fuel Tank Support Series
Material: Stamped cold-rolled steel plate with black protective coating
Form Factor: Twin curved support arms with central bridge arch and lower mounting eyelets
Mounting Interface: Direct bolt pattern matching 40-5 / 44-5 engine crankcase bases
Engine Platforms: 43cc (1E40F-5) and 52cc (1E44F-5) 2-stroke small engines
Delivery Time: 30 Days
Packaging: Cardboard packaging
Send Inquiry
Add To Inquiry
Description

Jiaxing Norsun Trading Co., Ltd. is one of the leading manufacturers and suppliers of tl43/cg430/40-5/tl52/cg520/44-5 fuel tank support in China. With abundant experience, we are committed to providing high quality customized products with low price. Welcome to wholesale bulk CE approved products in stock here and get quotation from our factory.



Product Overview & Operating Details

Brush Cutter Fuel Tank Support Bracket

Stamped Steel Tank Cradle and Base Guard for 43cc and 52cc 2-Stroke Trimmers



product-1024-1024

Structure and Field Function

Stamped Steel Cradle Profile

This bracket mounts beneath the engine crankcase on compatible brush cutters. Formed from cold-rolled steel plate, the bracket sits directly under the plastic fuel tank to hold the tank in place and support its weight during regular cutting work.

Curved Arms and Base Clearance

The two upward-bent arms follow the outer curvature of standard 40-5 and 44-5 plastic fuel tanks. When the trimmer is set down on the ground during work breaks, the metal bracket acts as a base stand, keeping the bottom surface of the plastic tank elevated above gravel, dirt, and rough terrain.

Bolt-On Crankcase Fit

The bracket has pre-drilled lower eyelets that line up with the factory mounting points on 43cc and 52cc engine crankcase castings. Securing the bracket with standard machine bolts keeps the fuel tank firmly seated against the engine base without shifting.







Technical Specifications





Parameter Specification
Product 2-Stroke Brush Cutter Fuel Tank Support Bracket
SKU 0202117
Brand SeaSummer
Material Stamped Cold-Rolled Steel
Surface Finish Black Protective Paint
Structure Twin Support Arms with Lower Bolt Eyelets
Fastener Compatibility Fits standard M5 / M6 Fasteners
Engine Displacement 43cc (40 mm bore) and 52cc (44 mm bore) 2-Stroke Engines
Engine Series 1E40F-5, 1E40F-5A, 1E44F-2A, 1E44F-5
Compatible Trimmers TL43, CG430, 40-5, TL52, CG520, 44-5, BC430, BC520
Delivery Time 30 Days
Packaging Cardboard packaging






Products Application





product-1024-1024

Hole Spacing and Arm Alignment

Batch checks on the production line measure center-to-center hole spacing across the mounting eyelets and inspect arm symmetry to ensure consistent fit with standard engine crankcases.

product-1024-1024

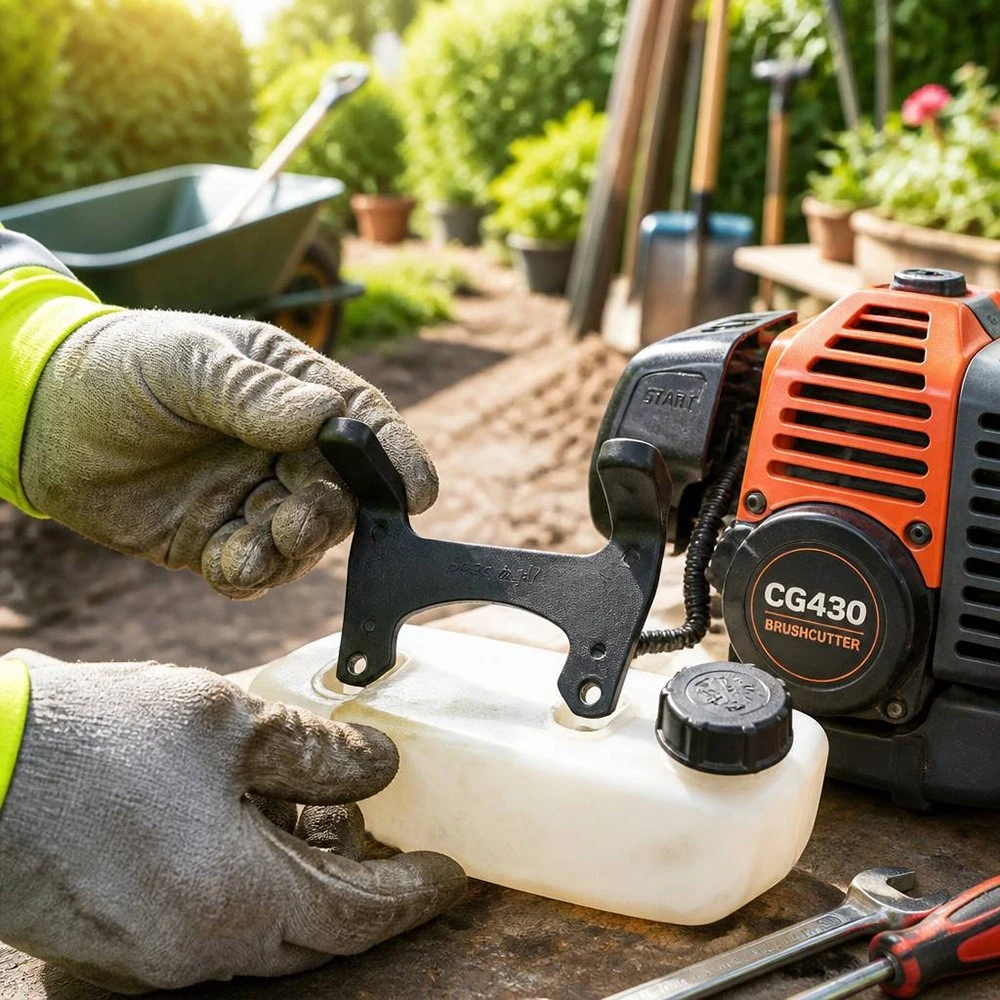

Mounting to Engine Base

Position the bracket beneath the fuel tank, align the eyelets with the threaded holes on the crankcase base, and thread the bolts in by hand before tightening down evenly.

product-1024-1024

Ground Support During Field Work

When resting the brush cutter on grass or soil, the steel bracket takes the ground contact, keeping the plastic fuel tank body clear of abrasive stones and debris.

Quality and Craftsmanship Details



product-1500-1500







Products Package





product-1500-1500



About Us





Jiaxing Norsun Trading Co., Ltd.

As an established supplier of outdoor power equipment and pneumatic components, Jiaxing Norsun Trading Co., Ltd. delivers streamlined B2B sourcing for global distributors. Backed by 200+ audited manufacturers in China, we ensure factory-direct wholesale pricing, strict incoming and outgoing inspection, and steady volume supply.

One-Stop Sourcing Hub

YOUR PROFESSIONAL ONE-STOP SOURCE
FOR 10000+ OUALITY PARTS

Direct Factory Network

200+ TRUSTED MANUFACTURING PARTNERS ACROSS CHINA

Production process


product-496-372
Injection MoldingPlastic & Rubber Parts
product-496-372
CNC Lathe TurningHigh-Precision OD/ID
product-496-372
CNC Machining CenterMulti-Axis Milling
-5
Precision TappingCalibrated Thread Pitch
product-496-372
Clean Assembly LineSemi-Automated Line
product-496-372
100% QC InspectionOptical & Pressure Test
product-496-372
Protective PackagingCardboard & Rust-Proof
-6
Warehouse & LogisticsFast Dispatch & Storage

Quality Assurance & Traceability: Every pneumatic component is manufactured under strict ISO quality management standards-from raw material inspection and CNC machining to thread gauge verification and 100% pressure leak testing



Expo experience





product-1500-2000



Customer Reviews





product-1500-2000





FAQ





Q: Which trimmer models work with this fuel tank support?

A: It fits common 43cc and 52cc 2-stroke grass trimmers with 40-5 and 44-5 engine platforms, including TL43, CG430, TL52, CG520, BC430, and BC520 machines.

Q: Does the bracket come with mounting hardware?

A:The bracket is supplied as an individual metal component. Standard M5 or M6 bolts and washers should be selected to match the engine crankcase thread depth.

Q: When should a fuel tank support bracket be replaced?

A:Bulk orders are shipped in export Cardboard packaging. The standard production lead time is 30 Days for volume distribution and container orders.
